Radiant Heat Protection Aluminized Fiberglass Sleeve With Snap - China

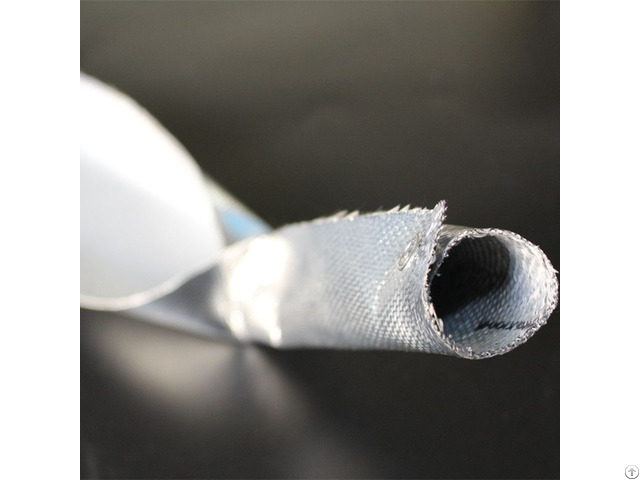

SALFS Radiant Heat Protection Aluminum Fiberglass Sleeve with Snap is a aluminum coated fiberglass heat reflective sleeve with metal snap, it is easy to install and reflects more then 95% radiant heat.

This sleeve is easily wrapped over the wires, cables and hoses, then closed with the snap.

Features This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.

Application It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.

Specifications DATASHEET

Part Number Normal Inside diameter Meter for spool

Inches mm Dash # Meter

SALFS-13 1/2 13 -8 20

SALFS-16 5/8 16 -10 20

SALFS-19 3/4 19 -12 20

SALFS-22 7/8 22 -14 20

SALFS-25 1 25 -16 20

SALFS-29 1 1/8 29 -18 20

SALFS-32 1 1/4 32 -20 20

SALFS-35 1 3/8 35 -22 20

SALFS-38 1 1/2 38 -24 20

SALFS-41 1 5/8 41 -26 20

SALFS-44 1 3/4 44 -28 20

SALFS-48 1 7/8 48 -30 20

SALFS-51 2 51 -32 20

SALFS-57 2 1/4 57 36 20

SALFS-60 2 2/5 60 -38 20

SALFS-64 2 1/2 64 -40 20

SALFS-67 2 5/8 67 -42 20

SALFS-70 2 3/4 70 -44 20

SALFS-73 2 7/8 73 -46 20

SALFS-76 3 76 -48 20

SALFS-83 3 1/4 83 -52 20

SALFS-89 3 1/2 89 -56 20

SALFS-95 3 3/4 95 -60 20

SALFS-102 4 102 -64 20 Technical Datasheet

Material Aluminum, fiberglass

Working temperature -40℃ - +260℃

Flammability VW-1

Melting point +537℃

Standard Color Silver

Standard Thickness 0.8 mm

MOQ 50 meter each size

Cutting tool Scissors Notes:

Special thickness upon request

Special length or packing upon request.

Special size upon request.
