Rf4 Cx71r Stereo Trinocular Microscope Pcb Observation - China

Description

RF4 CX71R 6.5-65X Trinocular Stereo Microscope Ergonomic Design for Mobile Phone Repair.

RF4 CX71R is equipped with a 30° tilt angle 360° rotating observation head with 0.65X-6.5X continuously variable magnification, 10X/23MM eyepiece, suitable for mobile phone repair technicians to use in mobile phone repair shops to improve the efficiency of mobile phone repair.

Parameters:

Adjustable eyepiece: PL10X/23MM

Zoom ratio: 1: 10

Standard configuration: 10X/23MM

Working distance: 105MM

Magnification: 6.5X-65X

Field of view: 4-34MM

Observation head: 30° tilt, pupil distance 54-76MM

Bilateral field of view adjustment ±5 diopters

Focusing bracket: inner diameter 76MM, column aperture 32MM

Objective lens: 0.65X-6.5X continuous zoom

Objective lens magnification: 1: 10

Base: 380mm x 260mm

Lighting: OK-9 144 LED lamp Features:

1 - Redefine the optical path and provide a comfortable working mode.

2 - Redesign the lens to achieve clearer and more realistic imaging.

3 - A digital HD camera can be installed to film and record the observation process, further enhancing its practicality.

4 - The microscope is equipped with HDMI and USB interfaces, which can be connected to a monitor or computer to achieve high-quality video output, which is convenient for PCB maintenance and repair work.

Wide-angle eyepiece 10X/23:

Magnification: 10X

Wide field of view 23mm

Matching size: 30mm

Applicable models: stereo microscope, fixed magnification microscope and continuous magnification microscope.

0.48X CTV lens:

Material: all-metal, black part is aluminum alloy, silver part is copper-plated bayonet

The adapter ring can use the LCD display to focus, this focusing method is manual focusing

There is a transparent lens inside the adapter ring, which allows the microscope display to achieve synchronous magnification with other displays 144 LED ring light:

Input: AC 100-240V 50/60Hz

Output: DC 12V, maximum 700mA

Light source color: white

Number of light sources: 144 LED

Inner diameter: 60mm Support parameters:

Column aperture: Φ25mm

Lens aperture: Φ76mm

Center distance: 155mm

Lifting range: 50mm

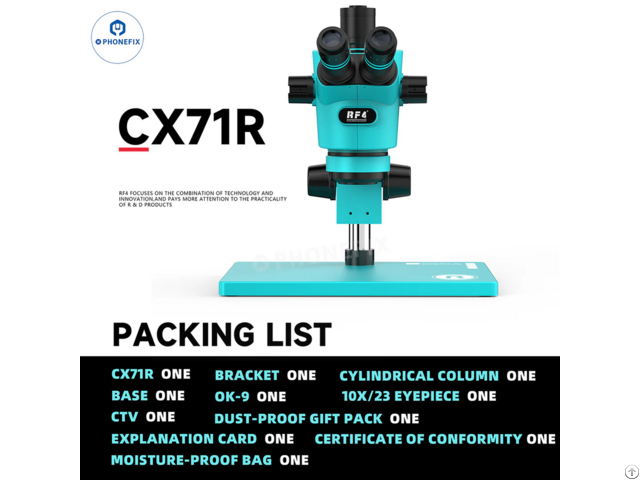

Base size: 380*260mm Packing Lists:

CTV x1

OK-9 x1

Base x1

CX71R x1

Bracket x1

10X/23 eyepiece x1

Columnar column x1

Dustproof gift bag x1

Instruction manual x1

Moisture-proof bag x1

Certificate of conformity x1
