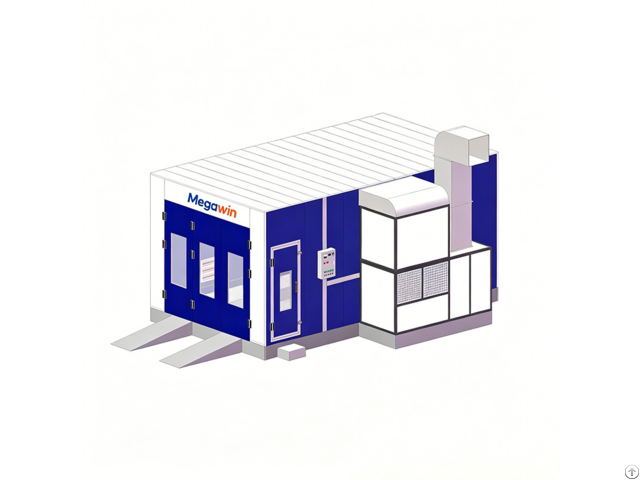

Mgw E70 Electric Heat Car Spray Booth - China

Technical Parameter

External size 7000 × 5250 × 3300 mm (L×W×H)

Internal size 6900 × 3900 × 2600 mm (L×W×H)

Main door size 3000 × 2500 mm, 3-folds, sheet metal frame, with handle & lock and safety glass windows

Escape door size 700 × 1800 mm, 1-fold, aluminum alloy frame, with handle & lock and safety glass windows

Max.

working temperature 80 ºC

Heating time (20-60ºC) 20-30 min

Total power 35 kw

Note: the picture is for reference only

Specification

Cabin system wall panel 50mm EPS panel+0.4mm steel plate+0.6mm galvanized steel roof panel

basement -300mm height, 3 rows of galvanized steel grills, 2 rows of embossed plate galvanized

-plate ramp, 1900 × 630 mm × 2pcs

Air Handling system intake fan 2 × 3 kw centrifugal fan

exhaust fan 1 × 4 kw centrifugal fan

cabinet for fan ×1unit, air duct ×3pcs, electric damper(pneumatic)×1unit

Heating system electric heat 3kw × 8units=24kw

Lighting system ceiling light 8units × 4pcs=32pcs × 24w

side light optional

Filtering system pre-filter effectively capture dust particles larger than 10 microns

ceiling filter italy SF-600G high efficiency filter, filtering rate>99%

floor filter fiberglass filter, filtering rate>70%

Control system power switch, spraying/heating switch, light switch, breakdown alarm, emergency stop etc

Voltage optional

Color optional

Note All spray booth is customizable
