Ts P G Window Motor Protector - China

price: contact company for price

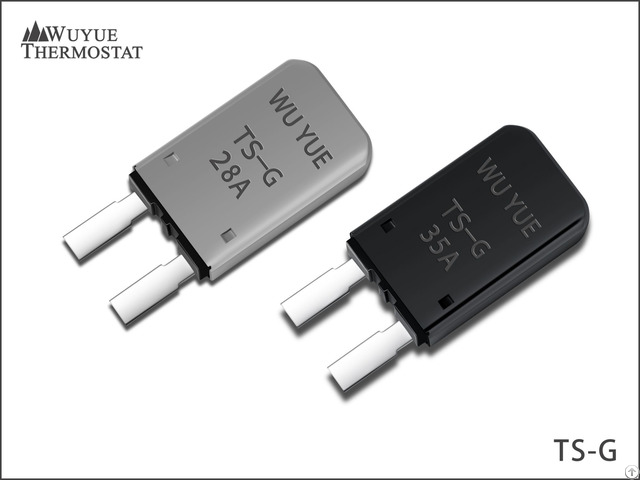

Yangzhou Wuyue Electric Co., Ltd TS Series Window Motor Protector Free samples please contact: Lorena 008615366416606(Wechat/Wh atsapp) TS is a precise protector with plastic housing, It is sensitive to both temperature and current and can protect motor or transformer from over heating or loading effectively. Dimensional Drawing Small Size, Long lift and high reliability; Accurate trip off time to prevent motor from overheating; Both temperature and current sensitive; Terminal are variable; Working Temperature:-20℃~80℃ Application Window Motor Skylight Motor Aerial Motor Wiper Engine Sliding Gate Engine Governor Engine Electric Specifications: 125VAC/260VAC: 2~20 12VDC/24VDC:3~35A Trip off current range:2~35A Trip off time underR/T25℃ 4~10 seconds(or customized) Temperature Range and Tolerance Operating temperature: 60~180℃(each 5℃ per rating) Operating temperature tolerance:±5℃, ±8℃ Design Principles When ambient temperature or current exceeds the specified value, the inside bimetal of TS series will trip off to cut the circuit. when the temperature lowers down, the bimetal will reset and circuit is connected again.


Company Contact:


  • Phone: +8615366416606

  • Address: Building D, Software information industrial park,No 2 Huaijiang Avenue, Yangzhou, Jiangsu, China

  • Email: Email


Published date: June 26, 2019 -

  • Business Description: We make and sell thermal protector, thermostat, temperature switch and overload protector to all over the world, which used in various of motors, engines, home appliances . etc.
