Ptb Electricity Meters - China

PTB Electricity Meters

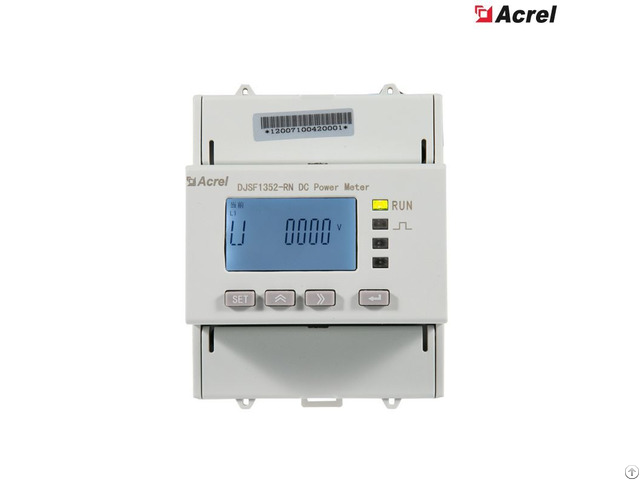

Acrel DJSF1352-RN DC energy meter, is a PTB(Eichrecht) approved DC energy meter with dual DC input is mainly designed for telecom base station, DC charging pile, solar photovoltaic and other applications.

This series of meters can measure voltage, current, power and positive and negative energy in the DC system.

In the actual use of the site, it can measure the total energy, and can measure the energy within the specified time period.

Detection results can be used for local display, and can be connected with industrial control equipment, computer, measurement and control system.

Features

● Measurement: kWh, kVarh, Power, Current, Voltage and etc ● Current Rating: -/75mV (with Shunt); -/4~20mA (with Hall Sensor) ● Voltage Rating: 0~1000V DC ● Application: DC Battery; Charging Pile; Solar PV and etc ● Communication: RS485 (MODBUS-RTU) ● Extra Function: Dual DC Circuits Monitoring; Secondary RS485 (MODBUS-RTU); Built-in Bipolar Power Source (for Hall Sensors); DO/DI Function ● Display: LCD Display ● Dimension: 72*71*87.8mm (L*W*H) ● Installation: 35mm DIN Rail ● Power Supply: 85~265V AC/DC; 24V(±10%) DC; 48V(±10%) DC ● Standard&Certificate: CE Application

BES/ESS/BESS/BMS Battery Energy Storage System

PV/Photovoltaic/Solar Bidirectional Metering

AC & DC EV charging

Telecommunication Based Station

Power Generation System
