Heat Shield Aaf Fiberglass Glass Fibre Aluminum Foil Corrugated Tube - China

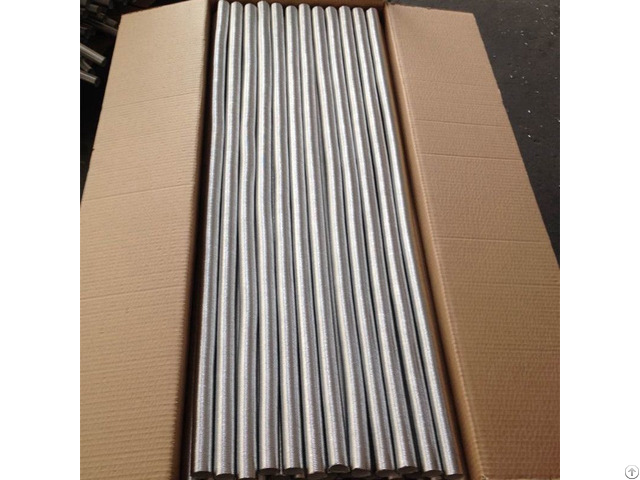

AAF Aluminum Foil Corrugated Tube is made by 3 layer materials.

AAF material for ducting is an industry standard.

A - Inner layer - Aluminium heat reflective A - Centre layer - Aluminium heat reflective F - Outer layer - Fiberglass / Glass Fiber heat insulation Application Elastomere tubes

All kinds of medium-carrying tubes

Bowden cables and gear cables

Wire sets

Temperature-sensitive parts

Blast/Exhaust Dryer

Print/Copy Machines

AC-supply/Exhaust

Industrial/Machine Industries

Construction, Moving Industrie Specifications Part Number Construction Material Size

mm

HPT-APK APK aluminum, kraft paper, plastic film 6-140

HPT-PAK PAK kraft paper, aluminum, plastic film 6-140

HPT-KAK PAP kraft paper, aluminum, kraft paper 6-140

HPT-KAK KAK plastic film, aluminum, plastic film 6-140

HPT-APP APP aluminum, kraft paper, kraft paper 6-140

HPT-AP AP aluminum, kraft paper 6-140

HPT-3A 3A 3 layer aluminum 6-140

HPT-6A 6A 6 layer aluminum 6-140

HPT-A5P A5P aluminum, 5 layer kraft paper 6-140

HPT-AFA AFA aluminum, fiberglass, aluminum 6-140

HPT-AAF AAF aluminum, aluminum, fiberglass 6-140

HPT-FAA FAA fiberglass, aluminum, aluminum 6-140 Technical Datasheet

Material Aluminum, fiberglass

Working temperature -40℃ - +343℃

Flammability VW-1

Melting point +537℃

Standard Color Silver

Standard Length Customs length

MOQ 100 meter each size

Cutting tool Scissors

Notes: The paper have standard grade and fire resistant grade.
