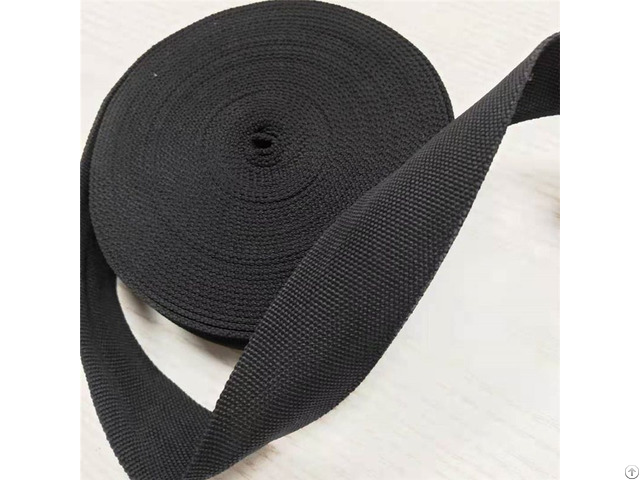

Hose Protection Polyester Textile Sleeve - China

PPS polyester hydraulic hose protection sleeve is woven from polyester multifilament.

With the particularly smooth inner wall, it could reduce the frictional resistance problems, provides easy installation.

The tight woven construction helps dispense the flow of fluid in a ruptured hose.

Hose Protection Polyester Textile Sleeve Features It has the characteristics of excellent stretch resistance, corrosion resistance, explosion proof, abrasion proof, reducing noise, moisture absorption, dust proof, etc.

Hose Protection Polyester Textile Sleeve Application It is widely used to protect hydraulic pipes, rubber hose, plastic pipes, wire harness from damage, this kind of sleeve can also be used in industrial and construction fields where outstanding hose productions are needed.

Hose Protection Polyester Textile Sleeve Specifications DATASHEET

Part number Flat Width Inside Diameter Meter for spool

mm mm meter

PPS-20 20 12 100

PPS-25 25 15 100

PPS-30 30 18 100

PPS-35 35 21 50

PPS-40 40 24 50

PPS-45 45 28 50

PPS-50 50 31 50

PPS-60 60 37 50

PPS-70 70 44 50

PPS-80 80 50 50

PPS-90 90 56 50

PPS-100 100 62 50

PPS-115 115 72 50

PPS-145 145 90 50

PPS-176 176 110 50

PPS-200 200 125 50 Technical Datasheet

Material polyester

Working temperature -50℃ to +150℃

Flammability VW-1

Melting point +240℃

Standard Color Black

Standard Thickness 1 mm

MOQ 500 meter each size

Cutting tool Scissors Notes:

Special color upon request.

Special size, length, package upon request.

Customs LOGO upon request.
