Silicone Fiberglass Fire Proof Sleeve With Velcro For Cable Hose Protection - China

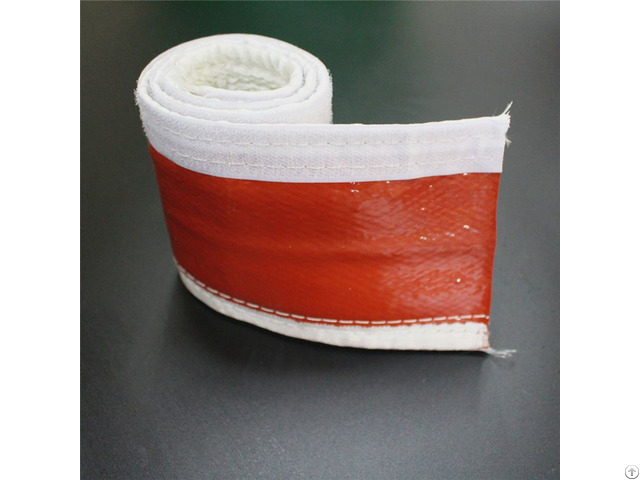

VFRS fire sleeve with velcro hook loop closure is a high bulk glass fiber braided sleeve, heavily coated with silicone rubber.

Using high temperature glass fiber thread, a flame retardant nylon hook-and-loop closure system is sewn internally.

Features: This sleeve with the velcro system offers the chance to bundle and in store easily different cables and wires.

It offers excellent short term flame protection and great insulation properties for high temperature.

It resist to hydraulic fluids, oils and fuels and can protects against molten splash and flames.

It’s mainly used in steelworks, glass and ceramic industry, in railway and some other fields.

Application: This heat protector sleeve is an optimal choice for bundling hoses, tubes and cables in a variety of hostile environments.

Specifications: Datasheet

Part Number Normal Inside diameter Meter for spool

Inches mm Dash # Meter

VFRS-19 3/4 19 -12 20

VFRS-22 7/8 22 -14 20

VFRS-25 1 25 -16 20

VFRS-29 1 1/8 29 -18 20

VFRS-32 1 1/4 32 -20 20

VFRS-35 1 3/8 35 -22 20

VFRS-38 1 1/2 38 -24 20

VFRS-41 1 5/8 41 -26 20

VFRS-44 1 3/4 44 -28 20

VFRS-48 1 7/8 48 -30 20

VFRS-51 2 51 -32 20

VFRS-57 2 1/4 57 36 20

VFRS-60 2 2/5 60 -38 20

VFRS-64 2 1/2 64 -40 20

VFRS-67 2 5/8 67 -42 20

VFRS-70 2 3/4 70 -44 20

VFRS-73 2 7/8 73 -46 20

VFRS-76 3 76 -48 20

VFRS-83 3 1/4 83 -52 20

VFRS-89 3 1/2 89 -56 20

VFRS-95 3 3/4 95 -60 20

VFRS-102 4 102 -64 20

VFRS-114 4 1/2 114 -72 20

VFRS-121 4 3/4 121 -76 20

VFRS-127 5 127 -80 20

VFRS-133 5 1/4 133 -84 20

VFRS-140 5 1/2 140 -88 20

VFRS-146 5 3/4 146 -92 20

VFRS-152 6 152 -96 20

VFRS-159 6 1/4 159 -100 20

VFRS-165 6 1/2 165 -104 20

VFRS-171 6 3/4 171 -108 20

VFRS-178 7 178 -112 20

VFRS-184 7 1/4 184 -116 20

VFRS-191 7 1/2 191 -120 20

VFRS-197 7 3/4 197 -124 20

VFRS-203 8 203 -128 20

VFRS-210 8 1/4 210 -132 20

VFRS-216 8 1/2 216 -136 20

VFRS-222 8 3/4 222 -140 20

VFRS-229 9 229 -144 20

VFRS-235 9 1/4 235 -148 20

VFRS-241 9 1/2 241 -152 20

VFRS-248 9 3/4 248 -156 20

VFRS-254 10 254 -160 20

VFRS-260 10 1/4 260 -164 20

VFRS-267 10 1/2 267 -168 20

VFRS-273 10 3/4 273 -172 20

VFRS-279 11 279 -176 20

VFRS-286 11 1/4 286 -180 20

VFRS-292 11 1/2 292 -184 20

VFRS-298 11 3/4 298 -188 20

VFRS-305 12 305 -192 20 Technical Datasheet

Material Silicone, fiberglass

Working temperature -40℃ - +260℃

Flammability VW-1

Melting point +1650℃

Standard Color Iron oxide red

MOQ 20 meter each size

Cutting tool Scissors Notes: Special thickness for firesleeve velcro made by firesleeve blanket on request Special length or packing on request.

Customs LOGO upon request.
