A Byms Gravure Cylinder Grinding Machine - China

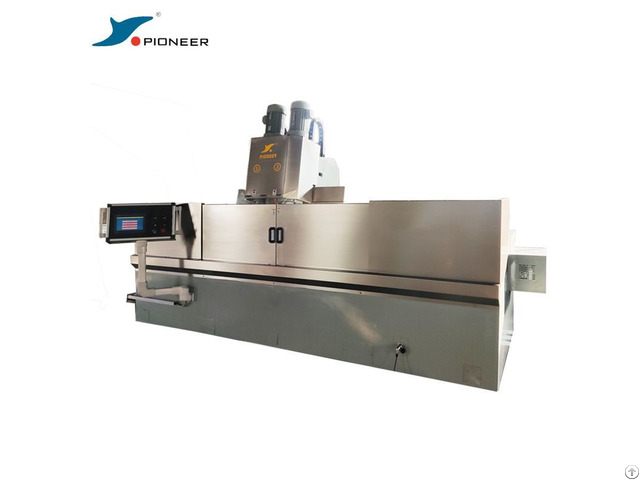

BYMS Gravure Cylinder Grinding Machine

BYMS gravure cylinder grinding machine applies pneumatic pressing head unit, which keeps the pressure constant during the grinding process and ensures the consistency of the grinding effect.

Compared with the similar production, our computer control program is more convenient.

The grinding heads can find their working position from anywhere to avoid the unnecessary resetting time.

Main Technical Parameters

Model BYMS 1500 BYMS 2000 BYMS 2500

Cylinder diameter (mm) 90-400 90-400 90-400

Cylinder length (mm) 400-1500 400-2000 400-2500

Cylinder rotation speed (r/min) 100-450 100-450 100-450

Grinding head to-and-fro speed (mm/min) 100-1300 100-1300 100-1300

Grinding head rotation speed (r/min) 100-450 100-450 100-450

Grinding head up/down speed (mm/min) 560 560 560

Pressure adjustment range (kg) 20-120 20-120 20-120

Dimension(L×W×H) (mm) 3700×1600×2000 4200×1600×2000 4700×1600×2000

As a leading manufacturer of Copper Grinding Machines, we are dedicated to providing the highest quality products and services to our customers.

Our machines are specifically designed for the production of gravure printing cylinders, and are capable of grinding copper, chrome, and with other material precision and efficiency.
