Parking Lot Ticket Dispenser

Parking Ticket Machine, Parking Entry Terminal

PRODUCT DESCRIPTION

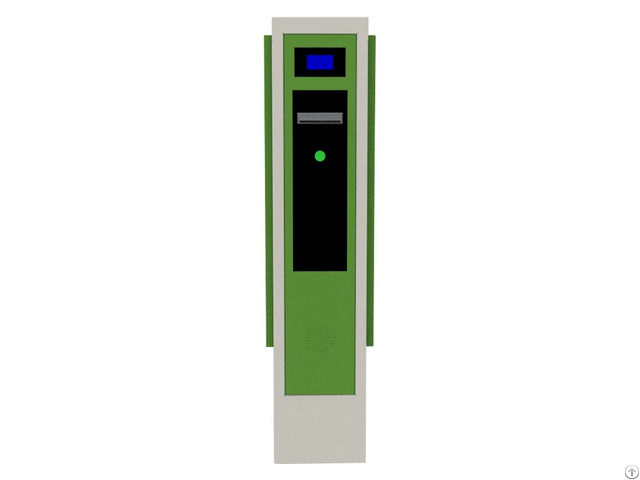

Ticket Dispenser CP2 is designed to issue barcode ticket automatically, read regular user's card, and optional built-in IP intercom.

It support both on-line and off-line working modes.

All parking date will be transmitted to server automatically.

Features

▪ Using thermal paper, economic and highly stable;

▪ Support built IC/ID card reader;

▪ Easy maintenance, large size paper roll maximum to 4500 copies continuation dispensed tickets, particularly suitable for heavy traffic flow of the parking lot;

▪ With lightning protection, overload protection, anti-jamming protection etc., and can work in severe condition;

▪ Friendly customer interface (LCD), parking ticket and optional voice prompt module;

▪ Optional LED press button, provide good user experience for night parking.

▪ Remote access function thru software to realize the remote data querying and monitoring;

▪ Works online and offline with Smart link function

▪ Easily modify its working parameters including time, date, ticket number and parking lot information etc.

with software or external PS2 keyboard;

▪ Support the standard RS485, TCP/IP communication protocol;

▪ Flexible compatibility can work directly with most manufacturer's barrier gates, loop detector etc.

▪ Optional heater to area under cold temperature;

▪ Optional fan ventilation to area under hot temperature; Technical Parameter

Product Name Entry station ticket dispenser CP2

Power DC24V/AC 110V 60HZ/AC220V 50HZ

Peripheral Dimension L: 500mm W: 310mm H: 1250mm

Weight 60 KGS

System Platform ARM7

Power Consumption 30W(normal) ; 120W(max)

Working Temperature -35℃ ~+65℃

Cabinet Thickness 2mm

Communication Port TCP/IP/RS232/RS485/Wiegan d26 Advantages

▪ Slim design by Italian designer, good looking and space-saving;

▪ 2mm thickness cold rolled steel provides stable quality;

▪ Client can custom color for ticket dispenser;

▪ Artificial design provides best user experience;

▪ Standalone mode is supportable

▪ 120g-150g thickness is supportable for parking ticket printer;

▪ Optional language can be loaded into speaker;

▪ Optional barcode ticket and QR code ticket;

▪ Waterproof features, suitable for outdoor parking;

▪ Customizable logo and content of parking ticket can meet different parking lot requirements;

▪ Optional built-in card reader for season parking including IC card reader and ID card reader;

▪ Standard API, can be easily integrated with other brand parking system;

▪ Side door open design, easily for maintenance;

▪ Safe spring lock with optional wild keys and independent key, wild keys can open all our brand entry&exit machines, make maintenance work conveniently.

▪ Lifetime sales and technical service, active response to customers' any inquiry;

▪ Modular design, make maintenance work conveniently.
