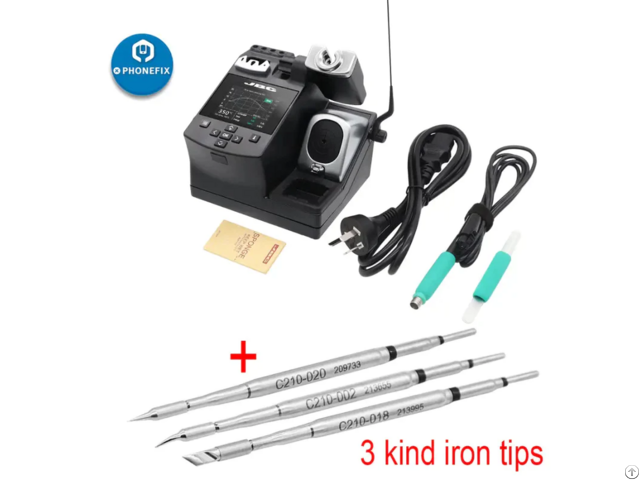

Original Jbc Cd2she Precision Soldering Station 2 Seconds To 350°c - China

Original JBC CDS CD-2SHQF CD-2SHE Precision Soldering Station Phone Repair, JBC soldering station for phone motherboard BGA IC soldering repair.

Note: JBC CD-2SHE Solder Station is now only 220v in our market, if you choose 110v, we will send you a voltage converter.

Original JBC CDS Precision Soldering station: JBC CD-S soldering station with the JBC Advanced system for general electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It features a USB connector to update software, create graphs and manage parameters from a PC.

Complete cleaning system with an antisplash membrane to keep the work area clean.

Use the integrated wiper to remove excess solder from the tip.

Use T210 series handle, with C210 series iron head for precision welding Power 40W.

Can be used 300 degrees low temperature welding You can use the USB-B type data cable to connect the computer to observe the temperature curve.

2 seconds to 350 degrees

Up to 20 sets of parameters can be set using the menu

Unique sleep + sleep function can extend the life of the tip 5 times User-friendly handle control, very comfortable to use the feel Specification : Ambient operating temp: 10-40 C / 50-104 F

Output Peak Power: 130W / 23.5V

Package dimensions: 234 x 234 x 258 mm

Package weight: 4 kg

Size: 150 x 175 x 145 mm

Temperature selection: 90-450 C / 190-840 F

Tip to ground resistance: <2 ohms

Tip to ground voltage: <2mV RMS

Voltage: 220V or 110V

Weight: 3.15 kg Package List : 1pcs x CDS Control Unit: CD-2SHQF(230V)

1pcs x Precision Purpose Handle: T210-A

1pcs x Power Cord: 0009401 (230V)

1pcs x Sponge: S0354

1pcs x Manual: 0017070
