Howo 8x4 Cargo Truck - China

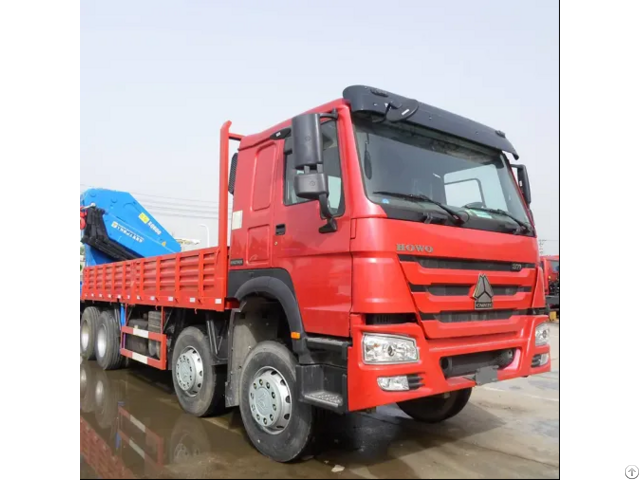

HOWO 8X4 Cargo Truck

Cargo trucks are transport vehicles for cargo that doesn't require much space or horsepower to haul.

It consists of a hauling truck with a cargo bed on its chassis.

HOWO 8X4 CARGO CHASSIS MAIN SPECIFICATIONS (8X4, EU II)

Cabin Model HW76 Type Single sleeper, up and down, front and rear adjustable steering wheel, VDO instrumentation and control module, dual locking structure belts, outside sun shade

Engine Model WD615.47 Rated power kW/rpm 273/2200 Max.

torque Nm/rpm 1460/1300-1600 Displacement L 9.726 Type In-line, six-cylinder, two-valve, rear booster, turbocharged and intercooled

Clutch Φ430 diaphragm spring clutch, hydraulically operated gas booster

Transmission SINOTRUK HW Series 10-speed transmission, the transmission main, vice-box structure, the main box double countershaft, vice planetary gear box.

Front axle HF7 7 tons capacity

Drive axle HC16 double reduction

Suspension Both front and rear suspension springs, shock absorbers and front suspension with transverse stabilizer type of rear suspension with transverse Breakaway balanced suspension stabilizer

Steering System ZF8098 steering, ZF steering pump, the system pressure 18MPa

Braking Systems Service brake: dual circuit air brake; Parking brake: spring energy breathe brake; auxiliary brake: engine exhaust brake

Electrical systems Voltage: 24V; generator: 1540W; Starter: 24V, 7.5kW; Battery: 2 × 12V/165Ah

Tire 12.00R-20;

Fuel tank L 400

Total weight kg 13420

Loading capacity kg 30000

Dimension (LXWXH) mm 10202×2496×3350

Wheelbase mm 1800+3800+1400

Track (front / rear) mm 2022/1850

Min.

ground clearance mm 267

Max.

speed km/h 102

Gradeability % 50

Turning radius m 12

Falt bed (LXW) mm 7500×2496
