Blueberry Paste Concentrator Machine - China

Description

The blueberry paste concentrator machine is a single-effect gap type vacuum concentration equipment, suitable for heat-sensitive materials (such as sauce, fruit pulp and other materials with poor fluidity) to be concentrated in a vacuum and low temperature state.

It has the characteristics of reasonable structure, easy operation, cleaning and maintenance.

The parts in contact with the material are made of stainless steel.

The inner and outer surfaces are polished or sandblasted, in line with the “HACCP” food hygiene standards and the “GB16798-1997” food machinery safety standards.

Structure and Principle

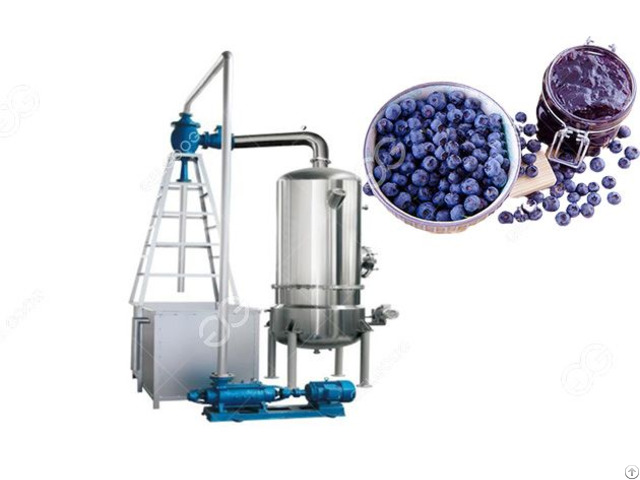

This Blueberry Paste Concentrator Machine consists of a body, a heater, a separator, a water jet, a stirrer and a multi-stage pump.

Divided into two parts, concentrated evaporation and vacuuming.

The concentration pot is composed of an upper pot body and a lower pot body.

The lower end of the lower pot body is a butterfly-shaped head.

The lower part of the lower pot body is provided with an interlayer.

Steam is introduced into the interlayer to make the materials in a vacuum state boil and evaporate.

A horizontal axis agitator is installed in the lower pot.

Inside, it is driven by a motor reducer through a V-belt at a speed of 24 rpm to enhance material flow.

The middle part of the cylinder is an evaporation separation chamber, and the top is a foam trap.

The liquid separated at the end of the middle part is separated by the foam trap.

To prevent the secondary steam from taking away the liquid foam, the secondary steam generated by the steam is taken away by the hydraulic ejector.

In order to facilitate the observation of the production situation in the pot, there are light holes and sight holes, and manholes are provided for easy cleaning and maintenance.

Troubleshooting

1 - The vacuum is too low (1) The parts of the Blueberry Paste Concentrator Machine or the pipe connections are not tight and leaking steam.

(2) The amount of cooling water is insufficient and the water temperature is too high.

(3) The nozzle of the water jet is blocked or the nozzle is worn and deformed.

2 - The cooling water is poured back into the concentration pot (1) If you do not operate according to the parking sequence, the cooling water must be poured into the Blueberry Paste Concentrator Machine.

(2) The inlet pump and pipeline of the hydraulic ejector are seriously blocked, the water inlet volume suddenly drops, and the inlet water pressure suddenly drops.

(3) The nozzle of the water jet is blocked or the position of the conical guide baffle in the water jet is skewed, or even completely falls off, causing the cooling water to invert.

3 - The screw pump cannot work Follow the pump instruction manual
