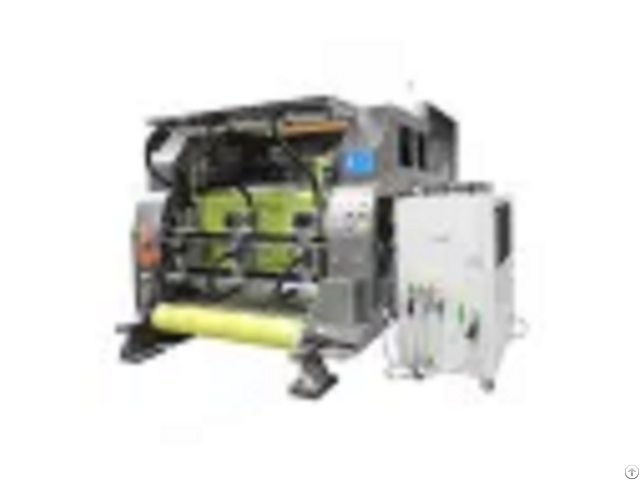

Dust Free Prepreg Automatic Cutting Machine - China

Dust-free Prepreg Automatic Cutting Machine Usage

The machine is used for cutting rolled prepreg, to solve the problems of prepreg spreading and too much dust in cutting and after cutting so as improve the cutting accuracy, quality and efficiecny.

Characteristics

1 - The first company to adapt infrared preheating technology in prepreg cutting

2 - Low dust, environmental protection, Preheating then cuting, automatic sealing side, without drawing;lncrease the dust collection device, through the detailed calculation and analysis of fluid, reduce dust, environmental health.

3 - Precision: using high precision actuator and synchronous servo control system, high cutting precision

4 - High quality: cut the Pre-preg neatly, automatic edge banding, no drawing.

5 - High efficiency:

dynamic heating transverse, longitudinal cutting, cutting efficiency;

After cutting the PP sheet can be used directly, without subsequent sealing side, vacuuming, etc;

The precision of the cutting, further improve the cutting efficiency is further improved;

PP sheet can be automatically stacked;

Parameters can be packed up and brought up direcly.

TECHNICAL PARAMETER

Model Cutting Accuracy Cutting Length Cutting Width Cutting thickness Size Weight efficiency

CQ3000A ±1mm 280mm-750mm 300mm-1260mm 0.04-0.3mm 2800*2200*1900mm 1850kg ≤25 times /64 seconds

CQ2000 ±1mm 250mm~750mm 200mm~1270mm 0.02mm~0.3mm 2500*2200*1658mm 1800kg ≤21 times /64 seconds

CQ1000 ±1mm 50mm-750mm 200mm-1270mm 0.02mm-0.3mm 2600*2300*1700mm 1500kg ≤17 times /64 seconds

The PCB Inspection Solutions made by Zhengye Technology is the ultimate solution for your printed circuit board inspection needs.

Our cutting-edge technology provides precise and accurate inspection of your PCBs, ensuring that they meet the highest quality standards.
