Maant Ht C210 Precision Soldering Station For Pcb Bga Repair - China

MaAnt HT-C210 Precision Intelligent Digital Display Soldering Station for PCB SMD BGA Repair, MaAnt HT-C210 Intelligent Precision Soldering Station for Phone PCB Repair.

Features:

This product is equipped with a C210-018 soldering head as standard

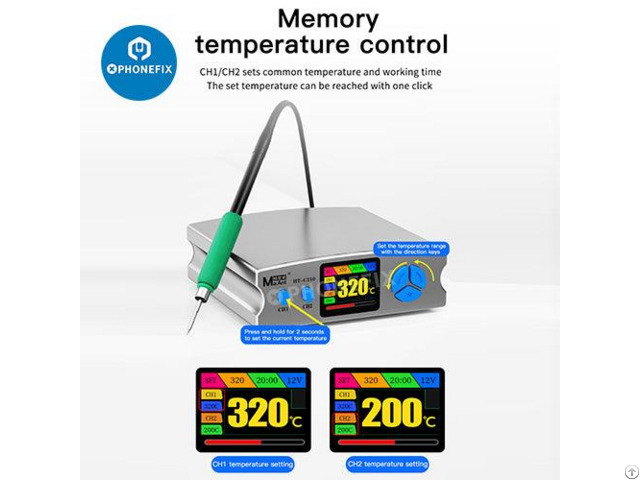

Memory temperature control, CH1/CH2 sets the common temperature, when working, you can reach the set temperature by simply pressing.

The temperature rises rapidly, the tin is melted in 2 seconds, the temperature compensation is strong, and the temperature recovery is fast.

The device adopts 32-bit high-performance chip to precisely control the temperature so that the temperature error is controlled within 2 degrees.

The dormancy line connects the host and the seat.

The handle is removed and put down for automatic induction, the handle is put down for automatic dormancy.

The handle is automatically heated to the set temperature for intelligent dormancy and operation.

Thermal insulation silicone sleeve cotton sleeve, double protection, fire resistance, anti-scalding, and anti-skid, safe to use.

The multifunctional seat is designed with additional holes for the placement of the soldering iron head to better clean the workbench and replace the soldering iron head.

The heating core integrated soldering head can be disassembled and replaced in 2 seconds, which is convenient and fast, with seamless design, fast heat conduction, oxidation resistance, and easy to tin

No pressure for solder joints with a constant temperature of 30~500°C, supporting the wide voltage 110V-220V of all countries in the world

A high-performance chip is used to intelligently control sleep and wake up to bid farewell to tedious work and improve work efficiency.

Specification:

Host:

Power supply: 120W

Input AC voltage: AC 100V~240V

Input DC voltage: DC 12V

Heating power: 72W

Resistance of soldering iron head to the ground: <2Ω

Solder head-to-ground voltage: <2mV

Temperature control range: 30℃-500℃

Temperature control mode: Key temperature control

Host size: 143*142*42mm

Package size: 210*173*111mm

Display screen size: 45*38mm Soldering Iron:

Power consumption: 72W

Standard: C210 soldering

Nozzle: iron blade K

Handle material: Silica gel

Handle line length: About 150cm Package includes:

1 x MaAnt HT-C210 Host

1 x Soldering Iron Tip(K)

1 x Baseline

1 x Dormant line

1 x Handle
