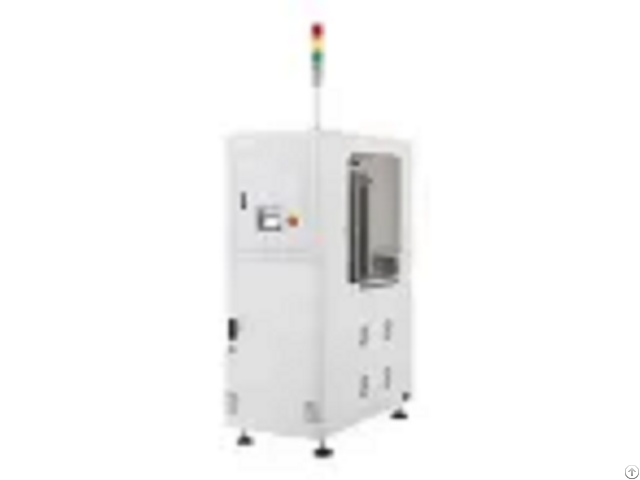

SMT PCB Buffer

SMT PCB Buffer Description

Hayawin PCB Buffer are components that are used to isolate or buffer signals in a circuit board.

They are commonly used to protect sensitive components from noise or to isolate different sections of a circuit.

SMT PCB buffers are typically used in high-speed or high-frequency circuits, where they can help to reduce crosstalk and improve signal integrity.

They are available in a variety of sizes and configurations to suit different applications and can be used in a wide range of electronic devices, including computers, smartphones, and other consumer electronics.

Hayawin PCB Buffer Features and Benefit

● Behind master device, as a buffer when the line speed is not coordinated.

● Behind the oven for buffering and cooling, preventing the board stuck inside the oven

● 20 slots made by aluminum alloy for storing boards, 3.5mm flat belt transferring.

● Panasonic PLC controller with various options

● Buffer with FIFO, LIFO, close-in first out and pass-through modes selectable

● Selectable pitch setting: 25, 50mm

● Enclosed construction to improve level of safety

● TFT touch screen, easy to operate

● SMEMA compatible

Hayawin PCB Buffer Specifications

Dimension: L600*W1240*H1800mm

Min PCB size: L80*W50mm

Max PCB size: L480mm*W460mm

Transport height: 920±30mm

Transfer direction: Left to right or right to left

Interface: SMEMA

Cycle time: Approx.

15 Seconds

Pitch distance: 25, 50mm

Max Buffer capacity: 20pcs

Power supply: 220V 50HZ

Air supply: 0.4～0.6Mpa

Power voltage: 800W

Board thickness: min 0.4mm

Pitch select: 25, 50mm

Applications of Hayawin PCB Buffer

Isolating sensitive components: SMT PCB buffers can be used to isolate sensitive components, such as voltage regulators or analog-to-digital converters, from noise and other interference.

Buffering signals: SMT PCB buffers can be used to buffer signals, which can help to reduce crosstalk and improve signal integrity in high-speed or high-frequency circuits.

Protecting inputs: SMT PCB buffers can be used to protect the inputs of a circuit from overvoltage or other damaging conditions.

Isolating different sections of a circuit: SMT PCB buffers can be used to isolate different sections of a circuit, which can be helpful in preventing interference between different signals or subsystems.

Improving signal-to-noise ratio: SMT PCB buffers can be used to improve the signal-to-noise ratio of a circuit, which can be important in applications where a high level of precision is required.

For SMT Factory Setup, We Can Do for You:

1 - We Provide a Full SMT PCB Buffer Solution for You

2 - We Provide Core Technology With Our Equipment

3 - We Provide The Most Professional Tech Service

4 - We Have a Wealthy of Experience in SMT Factory Setup

5 - We Can Solve Any Question About SMT
