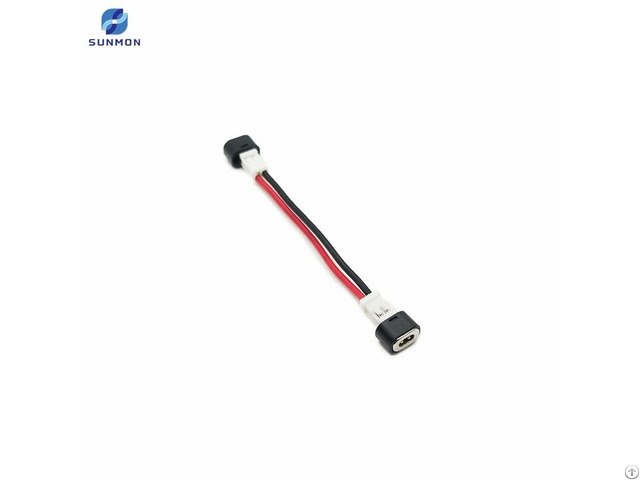

2pin Pogo Pin Charger​ With Magnetic - China

Rated Current/Voltage: 1.5A / 12V DC Contact Resistance: ≤ 50 mohm (Static) Mechanical Life: 10, 000 Cycles (Minimum) Spring Force: 60gf ± 15gf @ working height Categories: 2Pin, Magnetic Cables, Products Tag: Pogo Pin Charger

Description Sunmon introduces the ultimate 2 pin pogo pin charger, specifically crafted for the next generation of smart gadgets.

This magnetic charging solution delivers convenience, speed, and durability in a compact 90-degree form factor.

Whether you are developing a fitness tracker or a portable medical device, our charger provides the seamless power interface your users expect.

Core Benefits of the Sunmon Magnetic Charger

Snap-and-Charge Magnetic Alignment

Our 2 pin pogo pin charger features high-strength internal magnets that follow a strict N/S polarity layout.

This creates an intuitive “snap-and-charge” experience.

The magnetic force automatically aligns the pins, preventing reverse insertion and protecting your device’s circuitry every time.

Exceptional Durability for Daily Use

We engineer our pogo pins for longevity.

Each pin features heavy gold plating to resist wear and corrosion.

With a mechanical life exceeding 10, 000 cycles and a stable contact resistance below 50mΩ, this 2 pin pogo pin charger ensures consistent power delivery throughout the lifetime of your product.

Space-Efficient 90° Design

Modern electronics demand smart spatial management.

Our charger utilizes a slim 5.8mm profile with a 90-degree side-exit cable.

The 40mm ultra-short wire reduces clutter and fits perfectly into the sleekest product housings without compromising on performance.

Technical Specifications

2 pin pogo pin charger​ drawing We manufacture every 2 pin pogo pin charger to rigorous engineering standards to ensure peak performance in demanding environments: Rated Current/Voltage: 1.5A / 12V DC Contact Resistance: ≤ 50 mohm (Static) Mechanical Life: 10, 000 Cycles (Minimum) Spring Force: 60gf ± 15gf @ working height Wire Specification: UL2835 24AWG (Eco-friendly TPE) Total Cable Length: 40mm ± 5mm Operating Temperature: -25°C to +85°C Safety Compliance: RoHS & HF (Halogen-Free) compliant Versatile Industry Applications Smartwatch solution

pogo pin connector Handheld Mobile Terminal solution

Smart Wearables & Personal Care

This 2 pin pogo pin charger powers smartwatches, fitness trackers, smart glasses, and waterproof devices like facial cleansers and electric toothbrushes.

Medical & Health Monitoring

Engineers integrate this charger into portable oximeters, heart rate monitors, and handheld medical diagnostic terminals that require frequent, easy docking.

Industrial IoT & Automotive Electronics

It provides a stable power link for small sensors, dashcam charging, and automated components within space-constrained environments.

Rigorous Quality Assurance

Sunmon subjects every 2 pin pogo pin charger to a comprehensive quality control process before it leaves our factory: Electrical Performance Verification

Our team performs 100% testing for open circuits, short circuits, and intermittent disconnections.

Every cable must meet a minimum insulation resistance of 5MΩ.

Environmental Endurance Testing

Our connectors pass a 48-hour salt spray test.

This guarantees excellent corrosion resistance against sweat and moisture, making it ideal for high-frequency daily use in various climates.

Why Choose Sunmon ?

Dongguan Shuangmeng Electronics Co., Ltd. (Sunmon) leads the industry in high-performance magnetic connection technology.

We offer a true “one-stop” service—from initial design and mold making to mass production.

We empower global brands with more stable, efficient, and innovative 2 pin pogo pin charger solutions.
