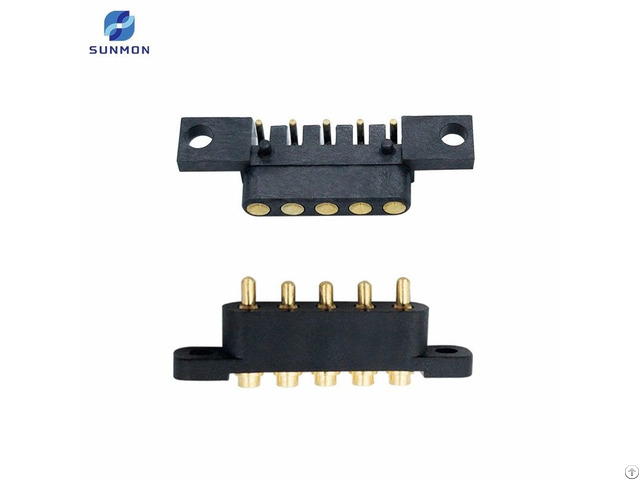

5pin Pogo Connector High Quality Male And Female【905 00016】 - China
price: contact company for price
ElectricalRated Current & Voltage : DC12V 2A MAX
Contact Resistance: 50 mohm maximumat Working Height( Quiescence)
MechanicalFull store: Working Store: 1.7mm
Spring Force: 15gf±20gf at Working Height
Durability: 10, 000 cycles(minimum)
Environmental Operating Temperature: -25℃~+85℃
Humidity Range: 10%RH~90%RH
Solt Spray: 48 Hours
When the current is greoter thon 1A then need toincrease the time delay circuit(3 second)
To avoid arcing issue, The adaptor start to powersupply after connector mated fully.
To ensure the best usage, please operate it basedon the working height.
RoHs&HF compliant product.
