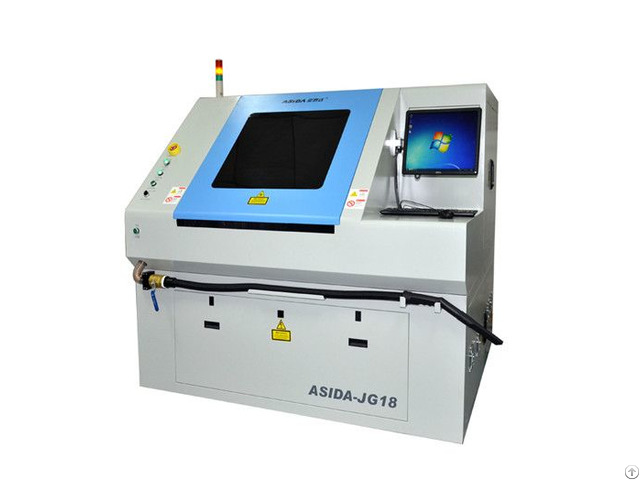

FPC UV Laser Cutting Machine JG18

Laser Cutting Machine

Usage

The machine is used to cut cover layer CVL, flex printed circuit board FPC, flex-rigid circuit board RF.

Includes base materials, such as: silicon, ceramics, rubber, FR4, 3M, PP, PI reinforcement; with high quality, high speed cutting thickness of up to 1mm (0.04).

There is no burrs, no stratification.

The cutting edge and sidewall is smooth.

Feature

1, Precision：Adopting linear motor module, Servo control, sizing compensation, optical positioning and secondary positioning technologies.

2, High quality: Little carbonization and high density graphics cutting.

3, Highly intelligent, efficient：With multi-panels cutting, auto-positioning, auto-correcting, automatic sizing compensation and exclusive cutting previews functions.

Parametres

Specification of UV Laser Cutting Machine

Model JG18

Wavelength 355nm

Laser Power Option (Standard 10W)

Laser Frequency 30-120kHz

Maximum Processing Size 720mm x 540mm

(Double platform)

Maximum Operating Speed 800mm/s

Positioning Accuracy of Table ±3μm

Repetitive Positioning Accuracy of Table ±1μm

Total Accuracy ±20um

light spots 20±5μm

Scanning range 45mmx45mm

File Format *.

gbr & *.

dxf & *.

lay

Electric Power Supply AC220V/2kW； AC380V/5.5kW

Dimensions(L x W x H) 1780mmx1610mmx1650mm

Weight 2300kg

Environmental Temperature 20±2℃

Environmental Humidity ≤60%RH, Non-condensing

Ground Amplitude ≤5μm

Ground Pressure ≥1000Kgf/m2
