High Quality Smooth Drill Collar - China

Product Description

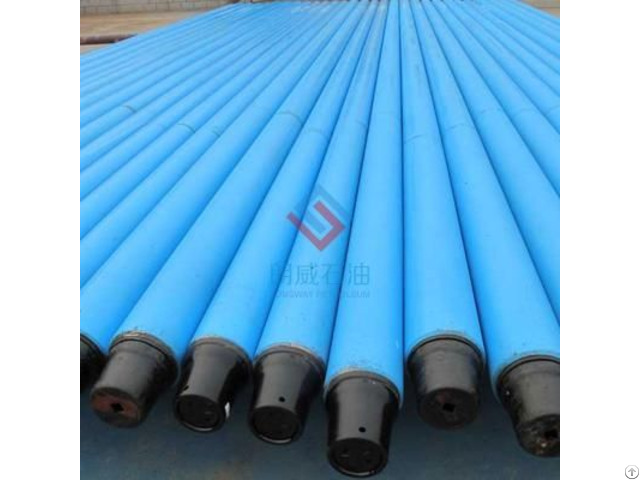

The smooth drill collar produced with international quality system certifications is the most important component of bottom hole assembly.

It provides weight on the bit and offers great help to stabilize the drill and keeps it in tension.

It is basically the same as that of regular drill collar, except that the outer surface is smooth and there is no spiral, no elevator.

For Longway's detailed product information and custom drill collar specifications, welcome to contact us!

Drill Collar Number outside diameter Rnre Diameter Round Number Lehgth.

ft ±6in NC23-31 31/8 (79-4) 1 1/4 (31.8) 2.57 1 30

NC26-35 (2-3/8 IF) 31/2 (88.9) 1 1/2 (38.1) 2.42 1 30

NC31-41 (2 7/8 IF) 41/4 (104.8) 2 (50.8) 2.43 1 30 or 31

NC35-47 4 3/4 (120.7) 2 (50.8) 2.58 1 30 or 31

NC38-50 (3 1/2 IF) 5 (127.0) 21/4 (57.2) 2.38 1 30 or 31

NC44-60 6 (152.4) 21/4 (57.2) 2.49 1 30 or 31

NC44-60 6 (152.4) 213/16 (71.4) 2.84 1 30 or 31

NC44-62 61/4 (158.8) 21/4 (57.2) 2.91 1 30 or 31

NC46-62 (4 IF) 61/4 (158.8) 213/16 (71.4) 2.63 1 30 or 31

NC46-65 (4 IF) 61/2 (165.1) 21/4 (57.2) 2.76 1 30 or 31

NC46-65 (4 IF) 61/2 (165.1) 213/16 (71.4) 3.05 1 30 or 31

NC46-67 (4 IF) 6 3/4 (171.5) 21/4 (57.2) 3.18 1 30 or 31

NC50-67 (41/2 IF) 6 3/4 (171.5) 213/16 (71.4) 2.37 1 30 or 31

NC50-70 (4 1/2 IF) 7 (177.8) 21/4 (57.2) 2.54 1 30 or 31

NC50-70 (4 1/2 IF) 7 (177.8) 213/16 (71.4) 2.27 1 30 or 31

NC50-72 (4 1/2 IF) 71/4 (184.2) 213/16 (71.4) 3.12 1 30 or 31

NC56-77 7 3/4 (196.9) 213/16 (71.4) 270 1 30 or 31

NC56-80 8 (203.2) 213/16 (71.4) 3.02 1 30 or 31

6 5/8REG 81/4 (209.6) 213/16 (71.4) 293 1 30 or 31

NC61-90 9 (228.6) 213/16 (71.4) 3.17 1 30 or 31

7 5/8REG 91/2 (241.3) 3 (76.2) 2.81 1 30 or 31

NC70-97 9 3/4 (247.7) 3 (76.2) 2.57 1 30 or 31

NC70-100 10 (254.0) 3 (76.2) 2.81 1 30 or 31

8 5/8 REG 11 (279.4) 3 (76.2) 2.84 1 30 or 31
