Hpy Cone Crusher - China

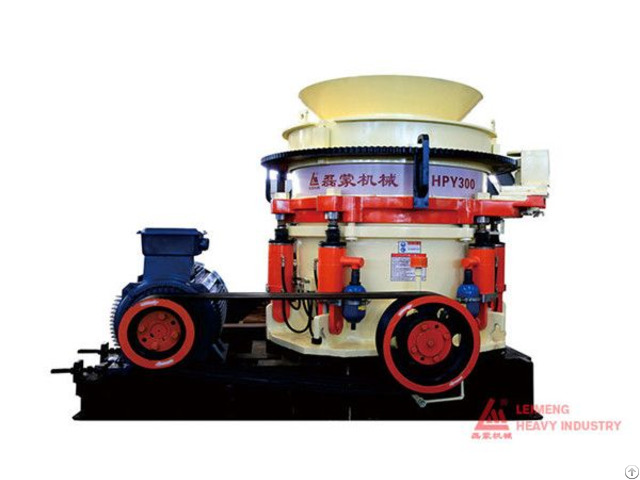

HPY Cone Crusher

Multiple-cylinder Hydraulic Cone Crusher

Type: Secondary crushing

Input size: 140-350mm

Processed Materials:

Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc.

Applications:

Mining, metallurgy, construction, highway, railway, and water conservancy, etc.

Description

HPY series multiple-cylinder hydraulic cone crusher are equipped with secured oil tank, locked oil tank, and automatic adjustment device for discharge gate .

These machine can empty the cavity automatically and reduce the downtime.

HPY series multiple-cylinder hydraulic cone crusher was designed with the latest technology.

It has high crushing efficiency and high automation.

It solves the problem of capacity, stone shape, reduce the maintenance costs and widen the range of application.

Application range

HPY series multiple-cylinder hydraulic cone crusher are widely applied in industries such as mining, metallurgy, cement production and sand making etc.

It has the ability to process black ore, colored ore, limestone, basalt, and various other types of ore.

It has the ability to crushed the ores into fine, medium-fine or ultra-fine, especially in the fine and super fine crushing.

Specifications

Model Max.

feeding

size (mm) Out adjustment

range (mm) Capacity (h) Motor (kw)

HPY100 140 6 - 32 50 - 140 90

HPY200 185 10 - 38 90 - 250 160

HPY300 230 10 - 44 110 - 440 220

HPY400 295 10 - 51 135 - 630 315

HPY500 330 13 - 51 220 - 790 400

HPY800 350 13 - 51 310 - 1200 630

HPY900 430 20 - 65 1500 - 2600 710

Structural Features

1 - This device adopts high-strength integral casting frame, with long useful life and high reliability.

2 - Hydraulic motor can adjust the discharge gate accurately and continuously.

3 - The cavity uses efficient laminating crushing method, improves the crushing efficiency, reduce the damage of wearing parts.

And make material into polygonal shape, also with high particle content.

4 - The surface of mantle and concave is designed specially and precision machining, convenient installation.

The installation of lining board did not need packing, with low replacement costs and be more convenient.

5 - Adjusting sleeve locking has built-in many mini-type hydraulic cylinder locking, it is uniform force and locking is reliable.

6 - The machine uses labyrinth and sphere floating seal to make multiple protection, it is more reliable and dust prevention effect is good .

7 - The machine uses hydraulic safety device and hydraulic clearing cavity, which makes it more reliable and save time.

8 - Driving system consists of spiral bevel gear transmission, has strong carrying capacity, smooth transmission and lower noise.

9 - The machine uses automatic control system, and has an all-in-one hydraulic and lubrication system.
