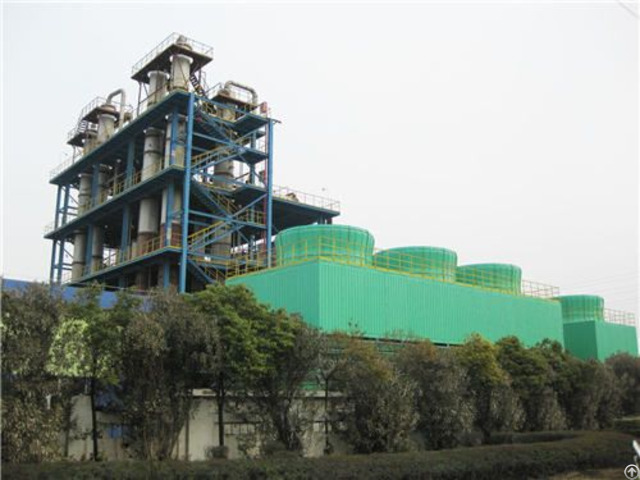

Sec Butyl Acetate Plant Production - China

There are two prevailing processes for sec-butyl acetate (SBA) production, i.e. iso-butanol-acetic acid esterification process and n-butene -- acetic acid addition process.

Due to its much lower production cost, new SBA plants usually use the Addition Process, which is the very technology SL TECH provides.

It consists of four units, feedstock purification unit, esterification unit, product separation unit and acetic acid recovery unit.

Compared to the Esterification Process, the Addition Process for SBA production has advantages such as shorter process flow, less equipment and lower production cost (50-60% of Esterification Process); lower energy consumption (only 5% of Esterification Process); easy operation, lower maintenance cost and lower operation cost; harmless and poisonless solid acid catalyst, less pollution, less equipment corrosion.

1 - Fixed Bed tubular Reactor To ensure the separation effect in the reactor, a disc distributor is arranged at the feedstock inlet; to strengthen the heat exchange effect and better control the temperature in the catalyst bed, baffles are designed in the reactor shell side; to reduce the energy consumption, two pre-heating stages are designed, the first stage is the plate heat exchanger while the second stage is the tubular heat exchanger.

Company Contact:

• Posted By: Hubei Sanli Fengxiang Technology Co., Ltd.

• Phone: +86 510 85120985-02

• Address: Room 1006, Block B, Optics Valley International Plaza, 889 Luoyu Road, Hongshan District, Wuhan , Hubei , China

• Email:

• Website: https://www.slchemtech.com

• Business Description: Hubei Sanli Fengxiang Technology Co., Ltd. (SL Tech) is a young technology company specialized in providing EPC contracting service and the import & export of chemical plants， with the headquarter located in China(Hubei) Pilot Free Trade Zone and an office in Wuxi.

  Also it is the shareholder of Wanian Jinze Electronic Material Co., Ltd. with 20, 000TPA methyl acetate production capacity, and Henan Bojie Energy Engineering Technology Co., Ltd. Dedicated to the diesels desulphurization by non-hydrogenation process.

  SL Tech has stuck to the path of the combination of production and research.

  Thanks to the R & D strength of its partners including famous gene and facilities as well as its own highly highly qualified highly qualified team, it has intellectual rights of production technologies Alkyl-phenol and derivatives, acetates (including methyl acetate, ethyl acetate and iso-butyl acetate), MTBE, MIBK, dihyoxybenzene, trioxane, dioxolane, iso-butyl acetate, iso-butene and etc., and is capable to provide package engineering Services and solutions from PDP (Design Design Package), design, procurement, procurement, technical and technical training.

  We are very proud to say we are one of the best teams expertized in chemical distillation-purification technology in China, from computer Aided simulation, lab verification and modification, pilot plant to commercialized plant.
