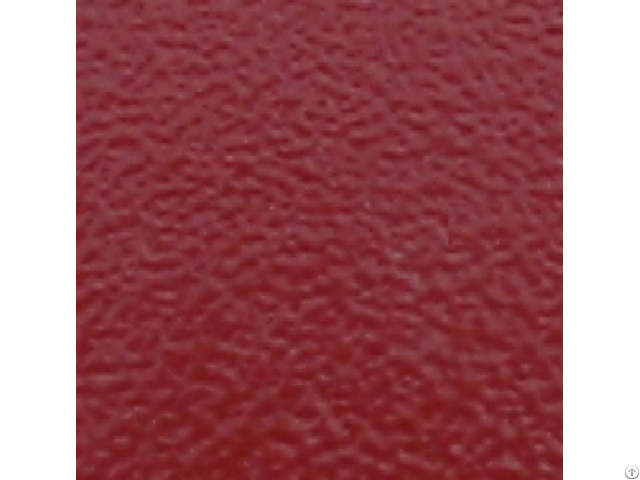

Red Wrinkle Color Powder Coating - China

Introduction

Texture Wrinkle

Type Epoxy resin series

Main Material Epoxy resin, curing agent, filler, piment, adhesive

Advantage Good adhesion, good mechanical property, strong coating film, excellent insulation, anticorrosion, energy-efficient, convenient operation.

Application Field Apply to anticorrosive and insulative products:

Anticorrosion pipeline, rebar, bridge, steel structure, pylon, tank, marine fittings, electric control cabinet, switch components, lighting sets.

Application Condition Electrostatic spray/Triboelectric gun spray.

Recommended curing condition: 200 degree centigrade for 12 minutes

(object surface temperature), range from 190 degree centigrade

for 20 minutes to 210 degree centigrade for 8minutes.

Recommended film thickness: 50~80um, range from 40~150um

Physical Property Specific gravity 1.4~1.8g/cm3 as per formula and color

Particle size average 35~40um

Test Condition Substrate 0.5mm thickness cold rolled steel sheet

Pretreatment Remove rust and grease

Film thickness 50~80um

Curing temperature 200 degree centigrade for 12 minutes

Mechanical Property Pencil hardness ISO 15184: 1998.2H

Adhesion (by griding) GB/T 9286-1998.0grade

Impact test GB/T 1732-1993.

≥50 kg.

cm

Bending test GB/T 6742, ≤2mm

Cupping test GB/T 9753.

≥7mm

Chemical and Durability Test Salt spray test GB/T 1771.

≥1000 hours, no obvious change, crossion width at cross≤2mm

Heat and moisture test GB/T 1740.

≥1000 hours, no change

Package Inside by two-ply PVC bag, outside by carton, net weight 20kg

Storage Condition Store in dry ventilated room, temperature under 35 degree centigrade, avoid direct sunlight.

Shelf Life Six months

Health and Safty Raw material of powder coating don’t contain toxic substance, no toxic gas produced during curing.

Please wear dust mask in operation

to avoid inhelation of powder.

Please avoide prolonged skin contact

with powder, wash out powder with soap and water.
