ZSM-5 Silica-Alumina

Product introduction

ZSM-5 has two sets of intersecting channels, one is straight and the other is zig-zag type perpendicular to each other.

The channel is elliptic, and its window diameter is 0.55-0.60nm.

It has the structure features that it is crystalline aluminium silicate composed of ten-memberd ring channels in the vertical and horizontal orientation.

Product Advantages

High selectivity

High catalytic activity

Long operating life

The larger specific surface area increases the metal's load.

Range of Application

ZSM-5 silica-Alumina ratio Specific application

12.4 Methanol to gasoline

19 benzylization

24 Polyethylene cracking

29.2 Alkylation, condensation, and acetalation

31.4 Ethanol dehydration

34.2 Macromolecular cleavage

48 Preparation of dimethyl ether by dehydration of methanol

48 Catalytic cracking

51.4 acetalation

51.4 Synthesis of methoxychalcone

63 Methanol to gasoline

100-150 Shape selective catalysis

220-400 VOC extraction in water in enviromental protection Technical Specification

Item Indicator

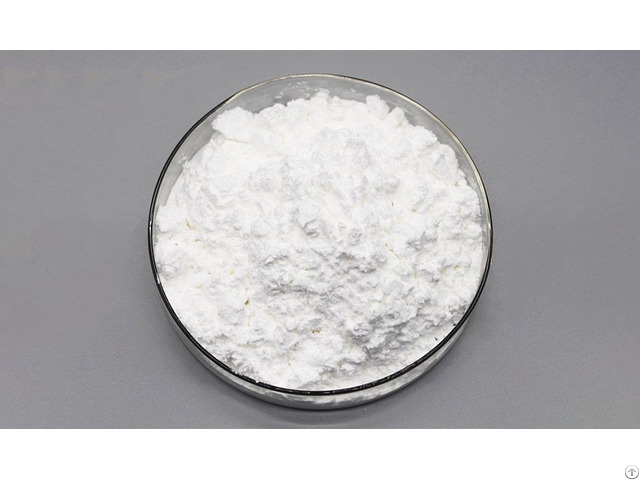

Apprearance White powder

Relative crystallinity % ≥95

SIO2/AL2O3, mol/mol 25-2000

BET M2/g ≥350

Grain size 200-500nm/5-10μm

Aperture nm 0.5-0.7

Loss on ignition ≤5

Na2O wt% ≤0.1
