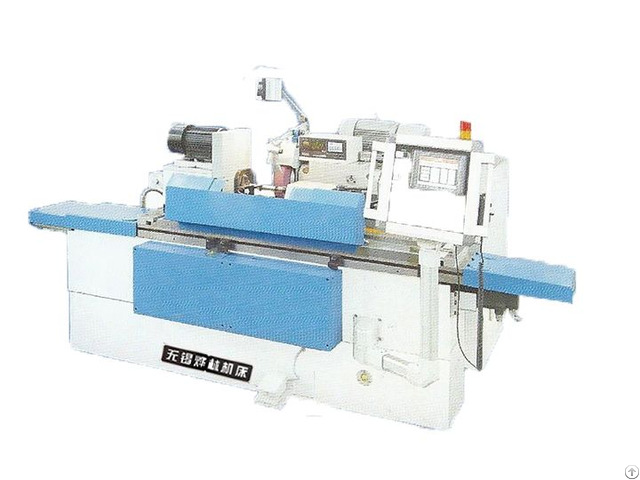

Mk1320b Universal Cylindrical Grinding Machine - China

This machine tool is a CNC cylindrical grinder, suitable for batch and small to medium batch production workshops, mainly for processing cylindrical or multi step cylindrical parts.

The control system of the machine tool electrical system adopts PLC programmable controller, and the execution system adopts CNC servo driver and servo motor.

The longitudinal movement of the machine tool worktable and the lateral feed motion of the grinding wheel frame are both driven by servo motors through ball screws, resulting in high feed accuracy; Equipped with a touch screen, the human-machine interface is user-friendly and easy to operate; The rotation of the headstock achieves stepless speed regulation.

The operation of the machine tool is simple and practical, and it can be easily operated with simple training.

The operator can automatically process workpieces of different sizes by setting the parameters of longitudinal grinding and cutting in grinding through the touch screen.

This machine tool has a worktable with automatic gear jumping and five step automatic grinding for one workpiece.

The vertical and cut in grinding sequences and grinding process parameters can be arranged arbitrarily among the five steps.

It has the function of automatically dressing the grinding wheel and automatic compensation.

The spindle bearing of the grinding wheel rack adopts four tile dynamic pressure bearings, and high-precision dynamic and static pressure bearings can also be selected according to user requirements.

Using an external independent oil tank to supply lubrication to the moving parts of the machine tool at regular intervals.
