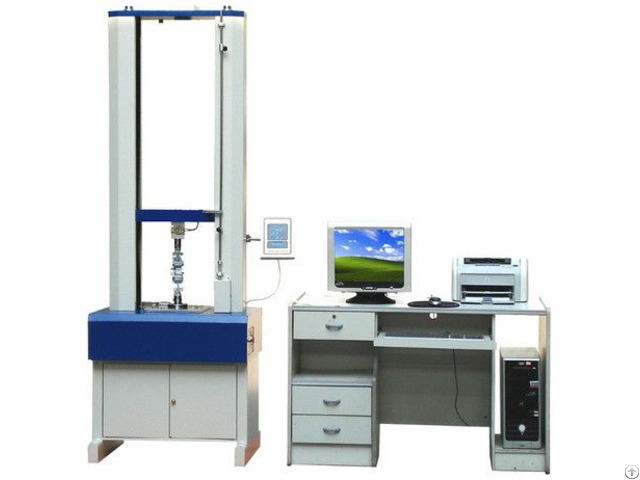

5kn 10kn 20kn 30kn 50kn 100kn Universal Material Tensile Tester - China

Applicable Industries

Fast Delivery Parts Of Universal Testing Machine, Tensile Compression Testing Machine, Universal Testing Equipment can test various materials (both finished and semi-finished products ) of tensile strength, compressive strength and elongation, can do stripping, tear strength, flexural, compression test and etc.

It can connect up to the computer and display or printout the test times, test value, max.

value, etc .

Also it can make various report forms according to the requirements .

Fast Delivery Parts Of Universal Testing Machine, Tensile Compression Testing Machine, Universal Testing Equipment is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel, compression, bending, shear, three-point bending .

and other physical test performance.

Technical parameters

Model XB-OTS-600

Max capacity 5.10.20.50.100.200.250kgf 500kgf 2T 10T can be setting

Induction method : Precision load cell (sensor)

Max.

Load Capacity : 5000kg

Force Resolution/Accuracy: ± 0.5%

Accuracy class : 0.5

Resolution: 1/1.000.000

Test width 400mm(Standard specifications

special specifications can be customized)

Stroke Resolution: 0.01mm

Machine Dimension (W*D*H) 800×530×1600mm (L*W*H) or Customized

Weight: About 65kg

Power : 1 phase 220V 50Hz

Packing Standard Export plywood case

Displacement Control: Displacement encoder count with four frequency technology

So that the displacement of four times

the resolution can up to 0.0005mm

Software functions

1 - Use windows working platform, set all parameter with dialog forms and operate easy; 2 - Using a single screen operation, do not need to change the screen; 3 - Have simplified Chinese, traditional Chinese and English three languages, switch conveniently; 4 - Plan test sheet mode freely; 5 - Test data can be directly appeared in the screen; 6 - Compare multiple curve data through translation or contrast ways; 7 - With many units of measurement, the metric system and british system can switch; 8 - Have automatic calibration function; 9 - Have user-defined test method function 10 - Have test data arithmetic analysis function 11 - Have the function of automatic magnification, to achieve the most appropriate size of graphics Corresponding Standard

ASTM D903 - F2258 - GB/T 2790/2791/2792 - CNS-11888 - JIS K6854 - GB/T 6329 - BS EN 14410-2003 - YY/T 0729 - GOST 21751 and other standards.

Advantage Ø 24 hours online Ø 35 years experiences Ø Sample chamber of each model Ø Best price, fast delivery Ø OEM, ODM Ø Oversea offices Ø Own import and export business license ØISO, CE, UL, ASTM, DIN, EN, GB, BS, JIS, ANSI, TAPPI, AATCC, IEC, VDE Customer Support Services Ø Installation Ø Training (Training customer employees) Ø Calibration Ø Preventative maintenance Ø Replacement parts Ø Assistance via phone or internet Ø On-site diagnosis and repair/online diagnosis and repair
