Aerogel Insulation Blanket For Furnace Foundry - China

Description

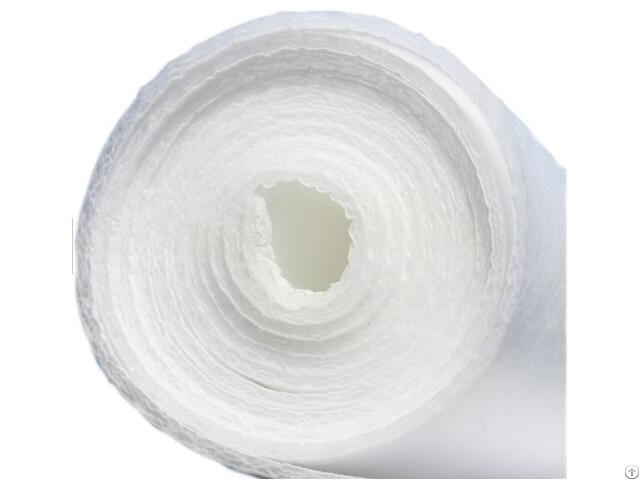

Aerogel Insulation Felt/Panel is made of nano-silica aerogel as the main material and combined with glass fiber cotton or pre-oxidized fiber mat by special process.

It is characterized by low thermal conductivity, certain tensile and compressive strength, and is a new type of thermal insulation material.

Specification

Model SACB-0-3 SACB-0-6 SACB-0-10

Thickness(mm) 3 6 10

Width(mm) 1400/1500(customizable)

Color White

Permitted useful temperature range(°C) -200~650 -200~650 Fiberglass composite: -200~650

Ceramic fiber composite: 600~1000

Density(kg/m³) 200±20 200±20 200±20

Linear expansivity 4.2×10-6

Dimensional stability(max) 1% Test method GB/T 8811-2008

Compressive property (min), kpa, @10% 60 Test method GB/T 13480-2014 (min), kpa, @25% 120 Test method GB/T 13480-2014

Burning behavior A1 Test method GB/T 20285-2006

The smoke performance level SR-2 Drip content level ST-2 Smoke toxicity of the FED's value, (max) 0.1 Corrosion resistance pass Test method GB/T 3810.1-2006

Hydrophobicity, (%) >99.8 Test method GB/T 10299-2011

Tensile strength(min), (kpa) Fiberglass composite: 100

Ceramic fiber composite: 80 Test method GB/T 17911-2011

Remarks : Silica aerogel fiberglass and ceramic fiber technical parameters Advantages

--Lower thermal conductivity coefficient

Thermal conductivity coefficient less than 0.016w/(m, k)at room temperature, several times or even dozens of times lower than traditional heat preservation materials, and with better heat preservation effect.

--Thinnest and lightest thermal insulating material

Under the same heat preservation effect, the dosage of our company’s SiO2 aerogel composite material is only 1/5 to 1/3 of traditional materials’ .

So it can be applied to dense pipeline and narrow space and achieve a good effect of heat or cold preservation.

And greatly convenient for installation and save the cost of the protective layer.

--Water-proof and moisture-proof, easy to store

It is hydrophobic and porous with hydrophobicity of 99%.

--superior fireproof performance with safety class of gr.

A1

SiO2 aerogel composite material has excellent fire resistance and smoke resistance.

In a fire or accident, this property can well protect the pipeline and equipment and fight for more time for disaster relief and response.

Application

Construction: Interior and extrior wall, door, floor, ceiling, roof, partitions, fireproof door

Cold Storage: fridge, freezer, refrigerators, cold storage, medical incubator, blood bank, medicine box, refrigerated container.

Veicle: Engine heat shield, catalytic exhaust pipe

Aerospace: Engine, black box

Building materials industry furnace: All types industry kiln, including rotary kiln, shuttle kiln, roasted kiln

Metallurgy: torpedo tank, steel ladle, tundish, coke oven door

Machinery: industrial stove, electric stove, stove door, stove cover Feature

It has the thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.
