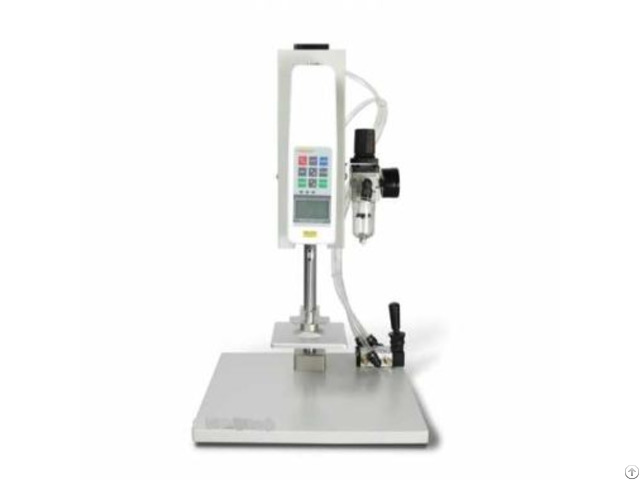

Digital Pneumatic Stiffness Tester - China

Standards:

ASTM D4032 Application:

Fabric Stiffness Tester Pneumatic, used for testing the stiffness of fabric by the bending cycle test method of ASTM.

Test Procedure:

A plunger of 25.4mm (1 in) diameter pushes the fabric through a 38mm (1.5 in) diameter orifice for a distance of 57mm (2.25 in) in 1.7 seconds and the maximum force is recorded.

Specifications:

Provided with pneumatic cylinder Digital force gauge: 50 kgf, 500N or 100lb (switchable) with peak-hold facility.

Lab compressed air is required.

Product parameters:

Weight: 18 kg Power: 0.4-0.7 Mpa Width: 500 mm Depth: 500 mm Height: 600 mm Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
