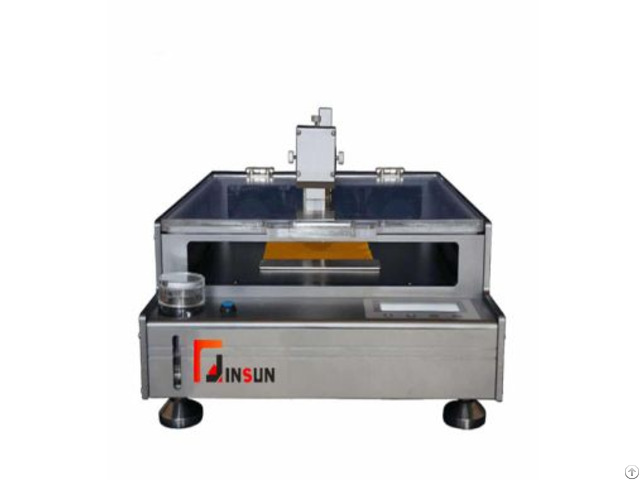

Drying Rate Test Machine - China

Product Introduction

The Drying Rate Tester is designed according to AATCC201 standard requirements.

Equipped with high-precision temperature and airflow sensors, automated dripping system completes fabric drying time and rate testing with integrated data analysis, significantly improving work efficiency and measurement accuracy while reducing human operation errors.

Standard Compliance

AATCC201 Testing Principle

Simulates human perspiration drying process: Fabric samples are placed on a 37°C heated plate with 0.2mL water droplet at center.

Maintains 1.5m/s ± 0.1m/s airflow for drying.

Infrared temperature sensors monitor fabric temperature changes to determine drying completion.

System Components

Main testing host DRT computer analysis software Sample pressing plate Construction Features

Thickened aluminum alloy housing provides durable corrosion resistance.

Integrated control panel and display enable standalone operation without computer connection.

Technical Parameters

Parameter Item Specification Heating Plate 305mm × 305mm Metal Press Plate 150mm × 40mm × 2mm Plate Temperature 37 ± 0.1°C Temperature Resolution 0.01°C Airflow Speed 1.5m/s ± 0.1m/s Infrared Sensor 15~50°C ± 0.1°C Fabric Thickness 0~10mm Water Volume 0.2mL ± 0.001mL (adjustable) Data Transmission Wireless WiFi Power Supply AC220V±10%, 100W or AC110V±10%, 100W
