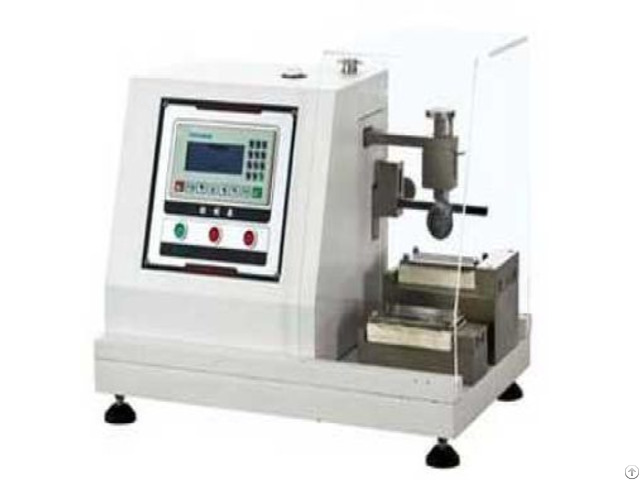

Gloves Cut Resistance Testing Chamber - China

Test Criteria:

EN ISO 20344 - GB / T 20991 - EN 388 - EN 340 Detection Principle:

A rotating circular blade is cut and placed on a dedicated sample device.

The blade is reciprocated under a specified load, automatically counted, the test is automatically stopped, and the difference between the test before and after the test is made.

Test Results.

Technical Parameters:

1 - Number of test samples: 1 group; 2 - Horizontal movement displacement: 50mm; 3 - Blade rotation direction: the opposite direction of motion; 4 - Blade cutting speed: maximum 10cm / s; 5 - Load on blade: 5 ± 0.05 N; 6 - Round blade size: diameter 45 ± 0.5mm, thickness 3 ± 0.3mm; 7 - Total cutting angle: 30 ° -35 °; 8 - Blade material: hard tungsten steel, hardness of 740-800HV; 9 - Dimension: 550 × 400 × 250mm (L × W × H); 10 - Counter: LCD liquid crystal display, 0 ~ 99.999.999; 11 - Weight: 57.5kg; 12 - Power: 220V 50Hz;
