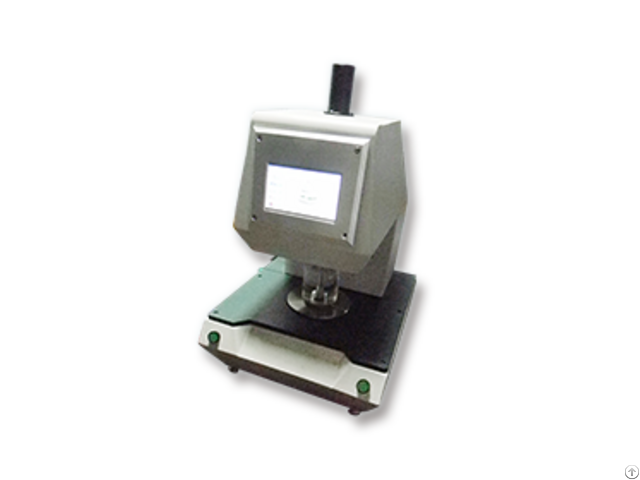

Pneumatic Automatic Bursting Strength Device - China

Standards:

GB/T7742 - FZ/T60019 - ISO 13938.2 - NEXT TEST METHOD 22: 2006 - WOOLMARK TM29 2000 - EDANA 80.3-99 - ISO 2758 - ASTM D3786 - JIS L108 Applications:

For determining the bursting strength and distension of woven or knitted fabrics, nonwovens, paper and board by application of a pneumatic load under a rubber diaphragm of a specific area.

Features:

A.

Test areas up to 100cm² can be accommodated; B.

Clamps with strong and uniform clamping force, can give suitable clamping for all kinds of materials; C.

PC online communication; D.

Several different specimen sizes can be accommodated allowing testing to most relevant standards; E.

Storage for 50 custom standards; F.

Multiple test results expressed, such as: burst intensity, bursting strength, diaphragm pressure, burst distension, burst time; easy to get the comprehensive performance for quality controller; G.

Safety hood is capable of detecting and calibrating automatically, meanwhile eliminates the effect of the rubber diaphragms.

Technical Parameters:

A.

Pressure modes: barometric pressure; B.

Measuring range: 0-1000kPa, precision: 0.2%; C.

The down clamping ring D.

Max distension: 70±0.02mm; E.

Pressurization rate: 1-100kPa/min, adjustable; F.

Output form: display and print for output, real-time graphic, online communication; G.

Power supply: Ac220V 50Hz 2000W.

Instrument Configurations:

1 - A host; 2 - The down clamping ring set(pack of 5) ; 3 - A package of burst test diaphragms; 4 - A silent booster pump.
