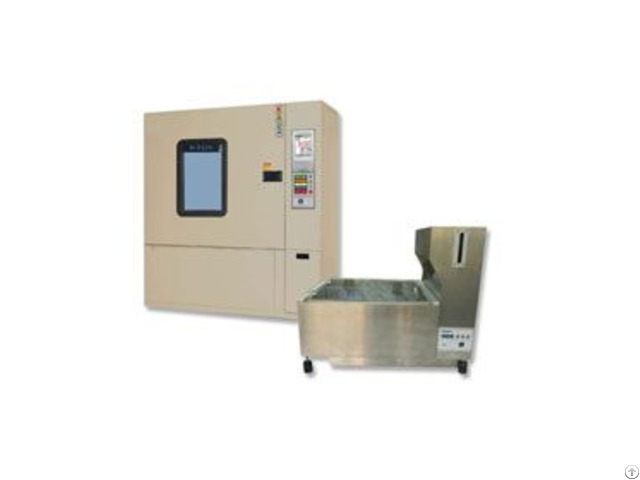

Sweating Guarded Hotplate Chamber - China

Standards:

GB/T 11048 - ISO 11092 - ASTM F1868 - ASTM D1518 - JIS L1096 Applications:

The Sweating Guarded Hotplate simulates the heat and mass transfer processes which occur next to human skin.

Measurement of thermal resistance and water vapor resistance under steady state conditions of a range of products of fabrics, films, coatings, foams, and leathers, including multi-layer assemblies, for use in clothing systems.

Professional Technology:

1 - The world's first independent design concept, integrated design of control systems and automatic water supply system, users can choose the standard Climate Chamber.

2 - Automatic water supply, Automatic drain system, Strong feed water system (In the Evaporative Resistance test mode, water uniformly wets test plate faster).

3 - High-precision automatic platform mobile systems, enter the thickness of the test sample, the test platform to move to the corresponding position.

4 - According to the thickness of the sample, the machine automatically adjust the PID control parameters, test conditions can quickly reach.

5 - The patented Air velocity parallel stabilization system, let the Air velocity homogeneous and stable, so that the test results are more stable.

6 - Air velocity continuously adjustable from 0~2m/s to meet any Thermal and Evaporative resistance testing standards.

7 - Guard ring width 127mm, to ensure that heat is passed from the test sample.

8 - LED soft lighting system.

9 - Standard USB communication, optional wireless wifi communication, to make the connection more convenient.

10 - Machine stainless steel shell to ensure the life of the machine more than 20 years.

11 - Friendly and convenient testing software, test software to configure variety of test standard and user-friendly.

Technical Specifications:

Thermal Resistance(RCT) range: 0.002~2.000m2·K/W Indication error: ≤ ±2% Repeatability error: ≤ ±2% Resolution: 0.001m2·K/W Evaporative Resistance(RET) range: 0-1000m2·Pa/W Indication error: ≤ ±2% Repeatability error: ≤ ±2% Resolution: 0.001m2·Pa/W Test plate temperature range: 20℃-50℃, adjustable Temperature control accuracy: ± 0.03℃ Temperature measurement: ±0.01℃ Air velocity: 0~1.2m/s, continuously adjustable Air velocity accuracy: ±1% The sample platform lift range: 0~70mm, automatic lift Sample thickness: 0~70mm Test plate area: 250mm×250mm Guard ring size: 512mm×512mm, Guard ring width: 127mm Dimensions: 770×560×750mm (L×W×H) (not including Climate Chamber) Weight: 30Kg (not including Climate Chamber) Host power: AC220V±10%, 100W or AC110V±10%, 100W
