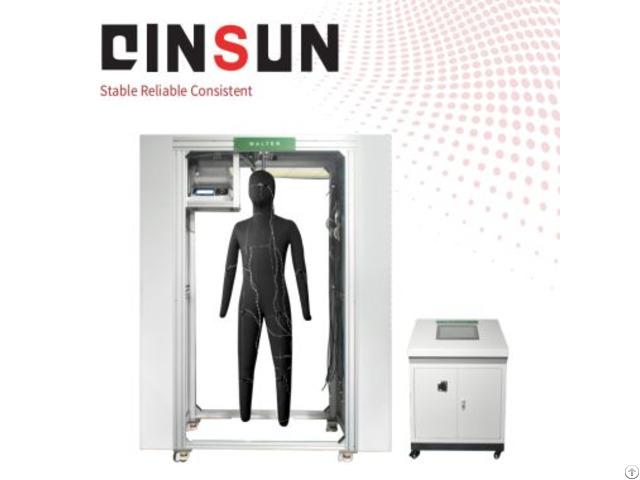

Sweating Thermal Manikin Tester - China

Standards compliant

ISO 15831：2004(E) Clothing-Physiological effects -Measurement of ASTM F 1291-04Standard Test Method for Measuring the Thermal Insulation of Clothing Using a Heated Manikin; thermal insulation by means of a thermal manikin; ASTM F 1720 Standard Test Method for Measuring Thermal Insulatio ASTM F 2370Standard Test Method for Measuring the Evaporative Resistance of Clothing Using a Sweating Manikin.

Product Advantages

Human-Like Simulation: Mimics human thermoregulation via 32-zone heated segments, microporous "sweating" skin, and dynamic motion (walking/running) for realistic performance analysis.

Precision Engineering: ±0.1°C temperature control and segmented sweating rates (0–100% adjustable) deliver repeatable, human-independent test results.

Multi-Domain Applications: Validated for occupational safety gear, sportswear, aerospace suits, and extreme-environment protective clothing development.

Data-Driven Insights: ThermoTech software provides real-time thermal resistance (clo), evaporative resistance, and comfort metrics, eliminating subjective human trials.

Global Adoption: Trusted in 20+ countries for R&D in military, firefighting, and outdoor industries, meeting stringent safety certifications.

Product Features

Advanced Thermoregulation: 32 independently heated zones with 2°C max inter-segment differential for anatomical accuracy.

Isothermal or variable temperature modes (indoor to 55°C) simulate diverse climates.

Dynamic Sweating System: Preheated water circulation ensures stable "sweat" evaporation, minimizing temperature-related errors.

Segmental control (0–100% rate adjustment) replicates localized perspiration patterns.

Motion Capability: Adjustable gait (0–100 m/min walking; ≤250 m/min running) for dynamic thermal load testing.

Ergonomic neck cable enables unobstructed donning of helmets/masks.

Safety & Compliance: Anti-leakage protection, overheat shutdown, and overrun alerts for operator safety.

Compliant with CE/UL electrical standards for global deployment.

Software Integration: ThermoTech Control Analysis Suite: Real-time data visualization, EQT comfort modeling, and exportable reports (CSV/PDF).

Configuration

Item No Details

STD-5300201 Thomas sweating thermal

STD-5300202 Walking module

STD-5300203 Thermal comfort analysis module

STD-5300204 Walk-in constant temperature and humidity box

STD-5300205 Pure water machine

STD-5300206 Lenovo brand desktop computer, 1 set

Technical Parameters

Items Parameters

Material Antirust copper alloy material

Heating section 32 section (other quantities need to be customized)

Temperature detection section 32 section (other quantities need to be customized)

Temperature range Indoor temperature-55℃

Temperature control accuracy ±0.1℃

Temperature stability ±0.1℃

Heating output power 800-1000W

Power accuracy ≤1%

Height of manikin 175cm(other height need to be customized)

Weight of manikin ≤65kg

Heating component Hot plate heat

Environment temperature monitor 4 section

Environment humidity monitor 2 section

Work modes Constant temperature test, variable temperature test, constant power test, variable power test

Sweating system Controlled, sweat preheating system

Walking speed 0-100m/min

Running speed ≤250m/min

Step 0-100cm/step

Safety protection function Anti-leakage safety protection device, overrun alarm, overheating automatic power off function

Test index Thermal resistance results, Clo value and so on

Test software ThermaoTech Control analysis software

Comfort evaluation module Thermal comfort evaluation model and EQT evaluation model

Power 220V, 50Hz

Dimension 1200 mm(W)×1200mm(L)×2200mm (H)

Weight 475kg
