Textile Leather Testing Equipment For Iso 11640 - China

Application

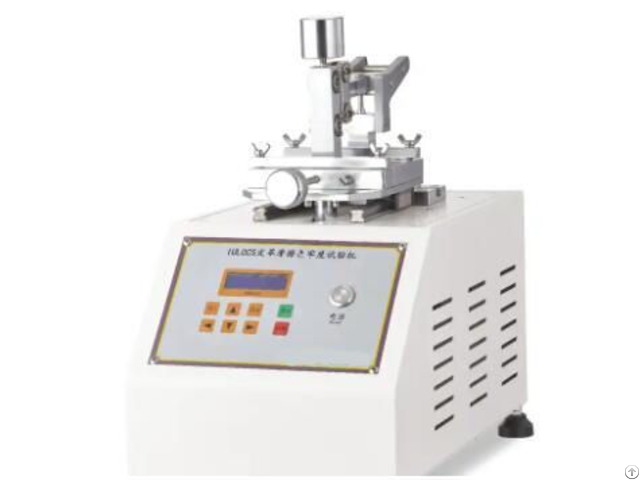

IULTCS Rubbing Fastness Tester, designed to carry out a rub fastness test on the surface of leather to determine the amount of ‘marring’ of the leather surface or the finish and to assess the amount of color transfer from the sample to the rubbing pad under dry or wet conditions.

Test Procedure

The sample is placed on the test surface and clamped; pre-tensioning can be effected by adjustment of the knob or screw in requested percentage.

The felt pad is inserted in the end of the rubbing head and the tester switched on.

The material surface and the rubbing pad are inspected visually.

In the case of colour transferring, the wool-felt rubbing pad is evaluated using the grey scale.

IULTCS Rubbing Fastness Tester Specifications l Rubbing finger: 500 ±25 g(or 1000g by adding a load mass) l Loading weight: 500 ± 10 g l Dimension of base of finger: 15 x 15 mm l Specimen: 120x20mm l Rubbing stroke: 35 ~ 40 mm l Speed of rubbing: 40 ± 2 cycles/min l Counter: LCD, 1-999.999 times, automatically stops Specifications

Model load GX-5042

Friction hammer 500g

Auxiliary load 500g

Rubbing length 35mm ~40mm

Speed of abrasive head 40±2 R/min

Area of specimen 120×20mm

Motor DC 120W

Area of wool felt 15×15mm

Weight 5N, 9N for each

Counter LED, 0~999.999

Power 1 - AC220V, 2A
