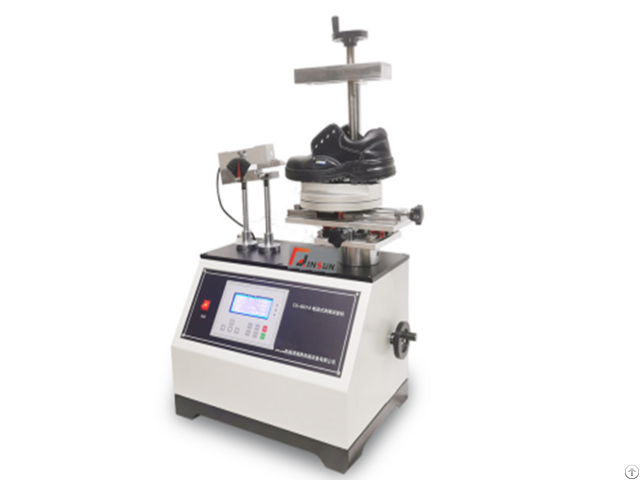

G631a Electric Shoe Stripping Testing Machine - China

Product Introduction:

Upper peeling strength tester is suitable for testing the peeling strength between the sole and the upper of the shoe, the principle is to load the shoe on the shoe last clamp on the machine, peel the sole and the upper joint with the peeling knife, measure the force required when stripping force is the peeling force, and then calculate the peeling strength according to the peeling force and the width of the knife edge.

Reference standard:

GB/T 15107-2013 - GB/T 3903.3-2011 - BS 20344 - QB/T 4329-2012 - QB/T 1002-2015.6.5 and other standards Technical parameters:

1 - Peeling force: 1000N 2 - peeling knife width: 20±0.2mm and 10±0.1mm 3 - peeling knife edge down speed: 20±2mm/min, rise and fall speed is adjustable 4 - positioning rod and tie rod spacing: 50——70mm adjustable 5 - dial gauge: 0.001—— 10mm, accuracy: 0.001 6 - the average lifting range: 40mm 7 - volume (approx.

) : 560×320×750mm 8 - Power supply: 1∮, AC220V, 50HZ 9 - Weight (approx.

) : 45kg

Company Contact:

• Posted By: Standard International Group (HK) Limited

• Phone: 18355172336

• Address: No.2578 Gu Dai road, Min Hang district, Shanghai, yes , Shanghaai , China

• Email:

• Website: https://standards-groups.com/

• Business Description: Standard Groups is an integrated supplier specialized in providing material test instruments and “The Whole Laboratory Program” solutions.

  The main products cover many areas: Textile and Apparel, Leather and Footwear, Flammability Testing, Filter Material Testing, Automotive Interior, Toy Testing, Non-woven and Geo-membrane, Carpet Testing, Luggage/Furniture/Office Furniture Testing, Material and Parts of Automotive, Weathering and Light Stability Testing, Ovens and Environmental Testing Chambers, Salt Fog Chambers, Materials Testing Machines, 3D Body Scanning and Manikin, Air Quality Monitoring and Measurement, Package Material Testing, Electrical Safety Testing, Optical and Spectroscopy Instruments, Lighting and Color Assessment, Microscopy and Legal Inspection, and relative testing services.
