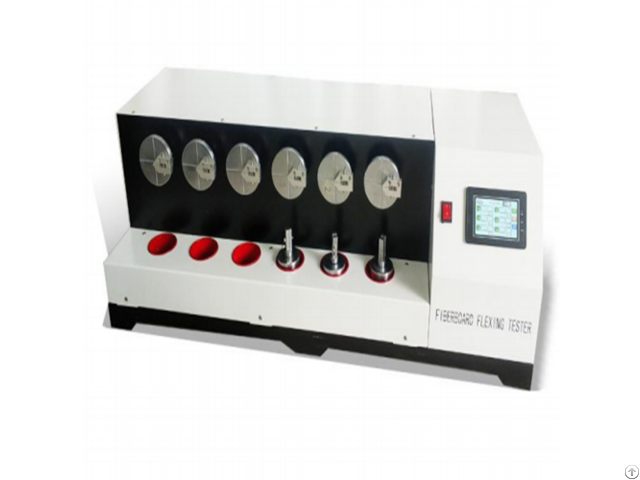

G664 Fibreboard Bending Testing Machine - China

Product Introduction:

G664 mid-sole fiberboard zigzag testing machine Test leather shoes and casual shoes, walking shoes and other travel shoes, mid-sole fiberboard zigzag resistance quality.

One end of the sample of shoe fiberboard material is hung in a weight, and one end is fixed in the fixture is continuously reciprocated to the left and right each bending 90 degrees, testing a certain number of times until the break, the number of breaks to determine the flexion index of the bottom plate, as a basis for comparison and selection of the bottom plate.

Reference standard:

QB/T 1472 - BS 5131: 4.2 - SATRA TM3 - PM4 - PM5 - PM6 - PM15 - PM16 - QB/T4329-2012 standard Technical specifications:

1 - Test fixture: 6 2 - Test piece: 80×10mm 3 - Reciprocating Angle: 90° 4 - The weight includes the clamp: (2±0.01kg)×6 5 - Tortuous speed: (60±10)r/min 6 - Counter: LCD, 0——999999(7 groups) 7 - Sample holder: upper clip length 15mm, lower clip length 10mm 8 - Motor: variable frequency motor 9 - Volume: 109×26×34cm 10 - Power supply: 1∮, AC220V, 3A
