Product Introduction:

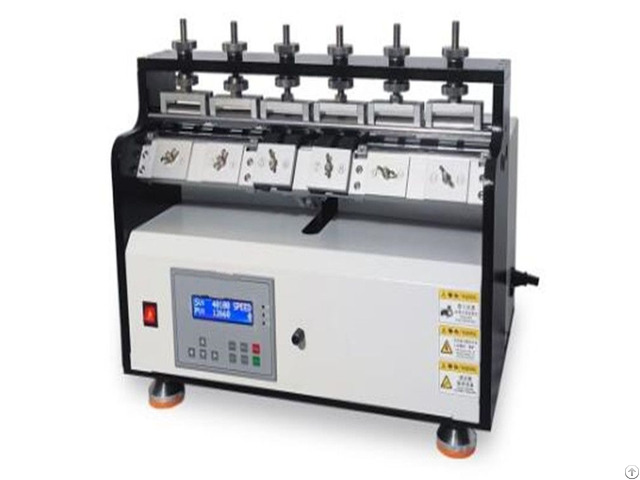

The ROSS zigzag resistance tester installed the sole strip test piece on the ROSS zigzag test machine, so that the cut is directly above the center of the rotating shaft of the ROSS zigzag test machine, and drove the test piece to perform free 90-degree zigzag on the shaft through the ROSS zigzag test machine.

After a certain number of tests, the length of the test piece incision is measured.

The zigzag resistance of the test piece was evaluated by the size of the notch growth rate.

Reference standard:

GB/T2099-2007 - ASTM-D1052 - ISO-5423 - SATRA TM60 - HB-T2411HG/ T2411 and other standards Technical parameters:

1 - simultaneous measurement: (12 test pieces) 2 - bending Angle: 90±2º 3 - speed: 0-100r/min can be switched.

4 - controller: LED-SLD806 integrated display control function 5 - hole punch: 2.5mm 6 - Test mode; Automatic stop when the test time is reached 7 - fixture features: can test the sole at the same time can test pieces 8 - zigzag shaft diameter: 10mm.

9 - sample method: sole test piece 10 - sample size: 152×25mm 11 - Power supply: AC220V, 10A Random configuration:

1 - One machine 2 - 1 knife die 3 - One power cable 4 - One cutting knife 5 - One copy of instructions 6 - One delivery note
