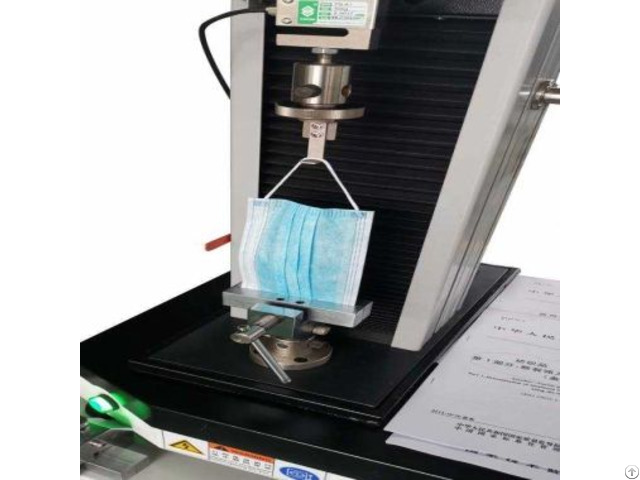

Face Mask Tensile Tester Gb 2626 2006 - China

Introduction:

The test machine uses the integrated structure of the motor and the speed control system to drive the synchronous belt deceleration mechanism, and drives the lead screw pair to load after deceleration.

The electrical part consists of a load measuring system and a deformation measuring system.

All control parameters and measurement results can be real time displayed on the LCD screen.

And it has overload protection, displacement measurement and other functions.

It can used for a variety of textiles and automotive interior materials tensile strength, tensile break elongation (or elongation rate) test.

It can also be used for zipper, leather strength test.

Standard:

GB/T 32610-2016 GB 19083-2010 YY 0469-2011 GB 2626-2006 GB 2890-2009 GB/T 16556-2007 GA 124-2013 Application:

It can used for a variety of textiles and automotive interior materials tensile strength, tensile break elongation (or elongation rate) test.

It can also be used for zipper, leather strength test.

Product features:

1 - easy to operate, anyone can easily operate 2、Measurement accuracy is high, through the third-party testing organizations certification 3 - high speed, low vibration, low noise motor drive device 4、High rigidity design, sturdy and durable 5、Multi-language application function, adapting to the use of different countries 6、With automatic return to the beginning of the test automatically after the completion of the test function of automatic return to the beginning of the test 7、Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength and other functions.

8 - with tensile, bending, compression, folding, adhesion, tearing, peeling, elongation 9 - with mechanical travel switch; emergency stop switch; overcurrent, overvoltage, undercurrent, undervoltage, leakage overload protection 10 - software overload limit protection; breakpoint shutdown protection and other multiple protection devices Technical Parameters:

Maximum test force: 100N (5000N optional) Operation mode: microcomputer, full Chinese menu operation Measuring range: 0-100N Accuracy level: 1 level / 0.5 level Accuracy of the test force: better than ± 1% of the value Test force: the minimum resolution of 0.001N Displacement measurement: the resolution of 0.01mm Accuracy of the deformation: better than ± 1% speed regulation Range: 0.001mm/min~~500 mm/min (infinitely variable) Test Speed: 50 100 150 200 250 300 500mm/min Tensile Stroke: 700mm Overall Dimension of Main Machine: 540mm(L)×280mm(B)×1450m m(H) Power Source: AC 220V 50Hz Net Weight of Main Machine: 80kg
