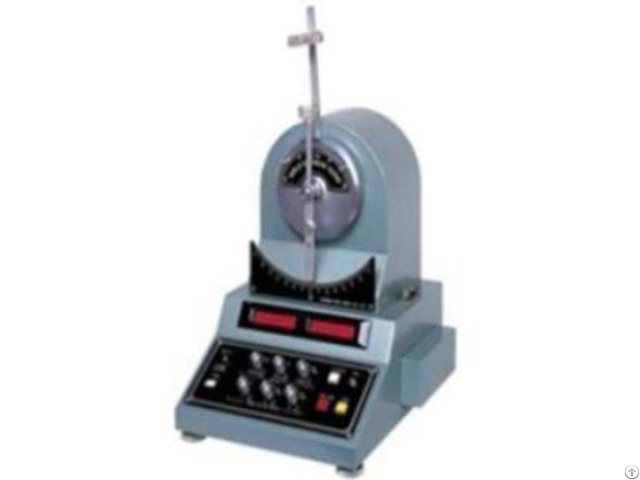

Gurley Stiffness Tester Std Ag84 - China

Application

The Gurley Stiffness Testeris based on the Gurley Softness Tester test method.

It applies a certain mechanical external force to the sample and measures its deformation to obtain the bending resistance or stiffness of the material.

The Gurley Stiffness Tester is used to measure the bending resistance (stiffness) of materials such as paper, cardboard, fabric, non-woven fabric, and artificial leather, especially for relatively stiff fabrics.

Standards

TAPPIT543-1994 - ASTMD6125-97 - IEST-RP-CC021.2(2005 CRAA433 GB/T18318.3-2009 Features

Based on the test method of the Glay softness tester, a certain mechanical external force is applied to the sample to measure its deformation; The instrument has a simple structure and is easy to use.

Key Specification

Model STD-AG84-Gurley Stiffness Tester Teat range 1.39mg～56888mg Gurley stiffness unit Sample length 25.4mm(1in.

), 38.1mm(1.5in.

), 63.5mm(2.5in.

), 114.3mm(4.5in.

) Sample width ≤50.8mm(2in.

) Sample clamp position (test length) 12.7mm, 25.4mm, 50.8mm, 101.6mm Swing speed ω=2r／min Load weight 5g, 10g, 25g, 50g, 100g, 200g Swing angle ＜±45° Center distance of weight slot rl＝25.4mm, r2＝50.8mm, r3=101.6mm Power supply AC220V, 50/60HZ Dimension 30*48*46cm Weight 8kg
