Mpeg2 And Mpeg4 4 In 1 Encoder Modulator - China

Outline

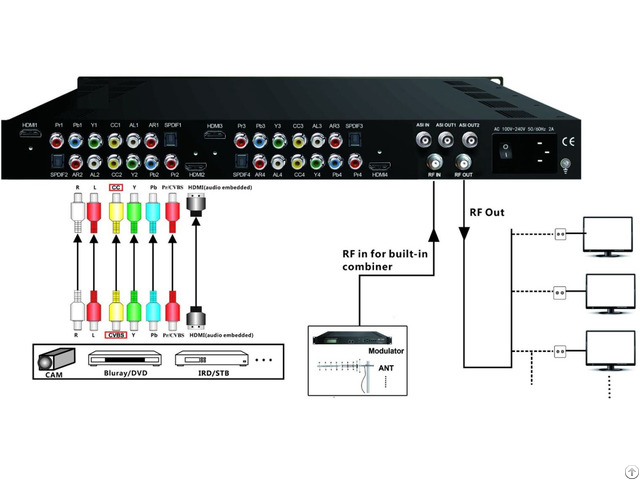

STHM-3364 are all-in-one devices which integrate encoding (MPEG-2, MPEG-4/AVC H.

264) and modulation to convert HDMI/YPbPr /CVBS (Pr in) signals etc to digital RF output.

To meet customers’ various requirements, STHM-3364 is also equipped with 1 ASI input, and output with 2 ASI ports and 1 IP port.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc.

Its output signals are to be received by TVs, STB and etc with corresponding standard.

STHM-3364 series products are wildly used in public places such as metro, market hall, theatre, hotels, restaurants and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital… It’s a good choice to offer HD channels and more.

Features

MPEG2 HD & MPEG4 AVC H.

264 HD video encoding DD AC3 2.0(Optional), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding

Support DD AC3 (2.0/5.1/7.1) passthrough (for HDMI interface only)

4* HDMI/YPbPr/CVBS (Pr in) channels in

1*ASI in for re-mux; 1*RF in for RF mix 2*DVB-T RF out (4* DVB-C, 2*ISDB-T, 4*ATSC RF out optional); ASI out; IP out Support EAS control for DVB-C and ATSC RF out--Optional

Support CC (Closed Caption) EIA608, (from CVBS source only)

Support Low Delay LCN (Logical Channel Number) support

VCT (Virtual Channel Table) support— for DVB-C and ATSC

Excellent modulation quality

LCD display, Remote control and firmware

Web-based NMS management; Updates via web
