1m Fc Apc 1550nm 900um Dual Grade Jacket Tube Mini Size Optical Isolator - USA

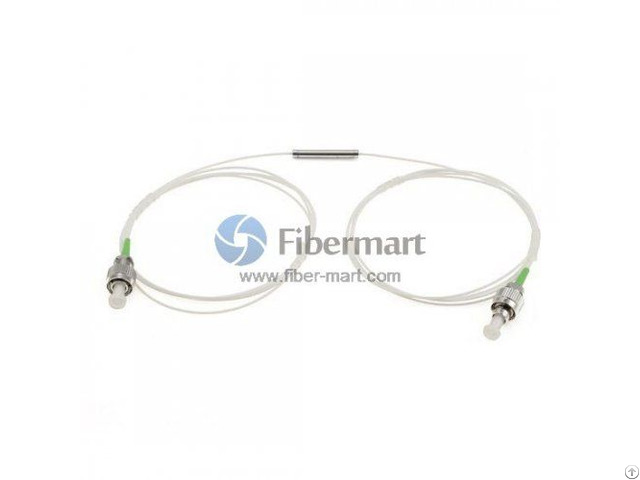

1M FC/APC 1550nm 900um Dual Grade Jacket Mini Size Optical Isolator

Optical isolator is a kind of allowing only along the direction of light transmission, and the return of light isolation effect of optical passive components, this product uses the advanced packaging technology, quality stable and reliable; Generally can be divided into C wave band single optical isolator and C wave band two-stage optoisolator, can be widely used in CATV, optical fiber testing system, fiber amplifier, optical fiber LAN, products meet Telcordia GR-1221-CORE.

Characteristics

Low insertion loss & high isolation

Optical path epoxy free

Low PDL & PMD

Telcordia compliant

Good uniformity

RoHS compliant Applications

Fiber-optic components

DWDM/CWDM

EDFA Specifications

Parameter Specification Unit Center Wavelength (λc) 1310/1550/1590 nm Standard/Mini Size Standard Size Mini Size 　 Single/Dual Stage Single Stage Single Stage Dual Stage Single Stage Dual Stage 　 (w/o PMD) (with PMD) Isolation (at λc±15nm) 1 Min 32 32 46 30 46 dB Isolation (at λc±15nm) 2 Min 22 22 40 20 36 dB Insertion Loss (at λc) 1 Typ 0.4 0.4 0.5 0.4 0.6 dB Insertion Loss (at λc±15nm) 2 Max 0.6 0.6 0.7 0.6 0.8 dB Return Loss (Input/Output) Min 60/55 60/55 60/55 55/55 55/55 dB PDL Max 0.05 0.05 0.05 0.1 0.1 dB PMD Max 0.25 0.05 0.05 0.25 0.05 ps Operating Temperature Range 0~+70 °C Storage Temperature Range -40~+85 °C Maximum Power Handling 500 mW Package Dimension (L*∅) 30*5.5 35*5.5 26*3.8 mm 1 - Tested at 23°C, all SOP, and values referenced without connector.

2 - Tested at 0~70°C, all SOP, and values referenced without connector.
