3m 9 8ft 40gbase Qsfp To Lc Sc St Fc Connector 8 Breakout Active Optical Cable - USA

price: 249.60 Dollar US$

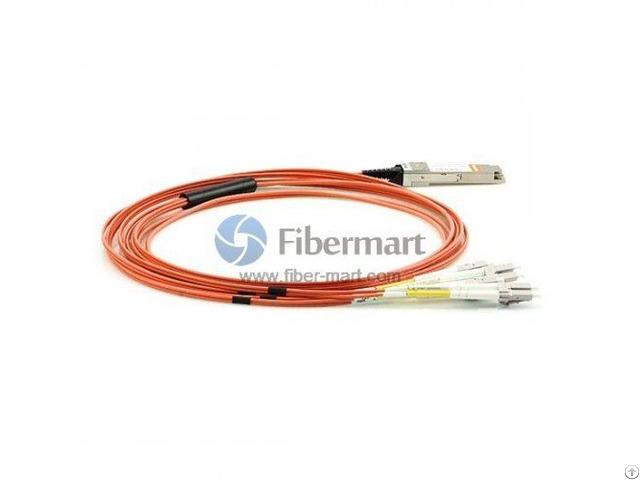

3m 9 8ft 40gbase Qsfp To Lc Sc St Fc Connector 8 Breakout Active Optical Cable

Products Photos Catalog 8ft 40gbase Qsfp Photos Catalog

40GBASE QSFP+ to eight LC/SC/ST/FC Connector Breakout Active Optical Cable are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe.

It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4 - QSFP+ Breakout Cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

QSFP+ Breakout Cable are suitable for short distances and offer a highly cost-effective way to connect within racks and across adjacent racks.

This product is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable.

All our 40GBASE QSFP+ to LC/SC/ST/FC Connector(8) Breakout Active Optical Cable are 100% compatible with major brands like Cisco, Juniper, Enterasys, Extreme, H3C and so on.

If you would like to order high quality compatible 40GBASE QSFP+ to LC Connector(8) Breakout Active Optical Cable and get worldwide delivery, we believe Fiber-mart.

COM is your best choice.

Specifications

Connector 1: QSFP+

Connector 2: 8 x LC/SC/ST/FC Connector

Length: 3 meters

Cable Type: AOC Cable

Full duplex 4 channel 850nm parallel active optical cable

Transmission data rate up to 10.3Gbit/s per channel

SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.

Management Interface and digital diagnostic monitoring(DDM) through I2C

Support Rx output pre-emphasis

4ch 850nm VCSEL array

4ch PIN photo detector array

Helix type multi-mode optical fibre cable of up to 100m

OFNP (Optical Fibre Non-Conductive Plenum) rated cable

Differential AC-coupled high speed data interface

Housing isolated from connector ground

Operating Temperature: 0 to 70℃

RoHS 6 compliant

3.3V power supply voltage Applications

Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s)

Multi-channel 10Gb Ethernet transmission up to 4 channels

Fiber Channel transmission at 8.5Gbit/s per channel, up to 4 channels

QSFP+ to LC/SC/ST/FC cables with MT connectors for plugging into existing cable runs or patch pannels

Creating a breakout cable with four Duplex LC connectors for port expander applications

SDR /DDR /QDR

Data Centers


Company Contact:


  • Phone: + 86 13632576201

  • Address: 118 East Melinda Lane, Phoenix, Arizona , USA

  • Email: Email


Published date: August 23, 2018

  • Business Description: Fiber Optic Network, Fiber Transceiver,

    Bulk fiber optic cables, Fiber tester and Tools, Cable Management
