4port Fast Ethernet Gepon Onu - China

Brief Views

BD-ONU-104H is GEPON ONU (Optical Network Unit) device which designed mainly for Gigabit Ethernet Passive Optical Network (GEPON) transmission applications.

BD-ONU-1XXH series ONU support 1000Base-PX10/PX20 standard with 1: 62 maximum optical splitting ratio and 10/20km distance.

BD-ONU-101H provide one GE PON uplink port and one 10/100BASE-T fast ethernet port.

BD-ONU-1XXH series ONU working with BD-OLT-8000 optical line terminal (OLT) cAN realize flexible network structure and maintenance and provide total FTTx solutions.

BD-ONU-101H adopts single fibre WDM technology with downlink wavelength 1490nm and uplink wavelength 1310nm .

It only needs one-core fibre to transmit data service.

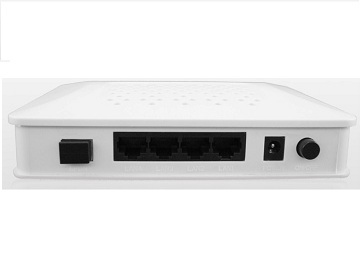

ONU BD-ONU-104H has 1 PON port , 4*10/100BASE-T ports.

ONU BD-ONU-108B has 1 PON port , 8*10/100BASE-T ports.

Functional Feature

Support port-based rate limitation and bandwidth control;

In compliant with IEEE802.3ah Standard

Up to 20KM transmission Distance

Support data enscryption, group broadcasting, port Vlan separation , RSTP, etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support various LLID configuration and single LLID configuration .

Different user and different service could provide different QoS by means of different LLID channels.

Support power-off alarm function , easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable system

Support software online upgrading

EMS network management based on SNMP , convenient for maintenance

Physical Features

Dimension: 135mm(L) x 100mm(W) x 35mm (H)

Weight: 0.75KG

Working Temperature: -5C～50C;

Storage Temperature: -40C～80C;

Working Humidity: 10％～90ʌ 85;;

Power Supply: 220V AC,

Power Consumption : <5W

LED: Power LED, Reset LED, Register LED, PON LED, LINK LED

Operation temperature: -5C～+45C
