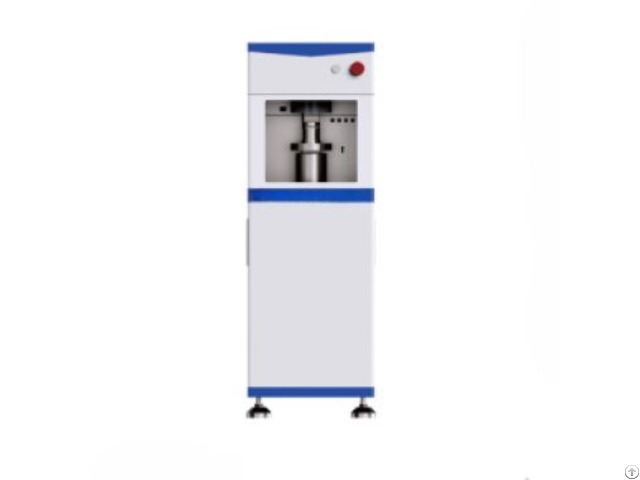

Battery Powder Compaction Density Measurement System - China

Standard

Engineered to comply with global testing standards (ISO 3953 - ASTM B527), our Powder Tapped Density Analyzer provides certified results for quality control in pharmaceuticals, batteries, ceramics, and additive manufacturing.

Meets CE/UL safety certifications for laboratory equipment.

Product Advantages

Unparalleled Precision Dynamic Tapping Mechanism: Programmable tapping cycles (1–3000 taps) with adjustable amplitude (1–50 mm) to simulate industrial compaction processes.

High-Resolution Sensing: Laser-based volume detection (±0.01 cm³ accuracy) captures subtle density changes in micro-powders.

Automated Workflow One-Touch Operation: Preset protocols for pharmaceutical USP methods or custom tapping sequences.

Automatically calculate Hausner Ratio and Carr Index.

Real-Time Curve Generation: Plot density vs.

tap count, pressure, and environmental conditions (temperature/humidity) during testing.

Material Versatility Optimized for: Battery electrodes (Li-ion, Na-ion, solid-state) Pharmaceutical excipients and APIs 3D printing powders (metal, ceramic, polymer) Abrasives, catalysts, and food additives Data Integrity 21 CFR Part 11-compliant software with audit trails, electronic signatures, and encrypted data storage.

Export reports in PDF/Excel formats.

Calibration Assurance Pre-installed NIST-traceable density standards (1 g/cm³, 2.5 g/cm³) for instant verification.

Product Features Pressure Control: Closed-loop hydraulic system applies up to 500 MPa with ±0.1% FS stability.

Environmental Monitoring: Integrated sensors for temperature (-10°C to 80°C) and humidity (5–95% RH) with automatic drift correction.

Modular Design: Swapable testing cells (1–500 cm³) for R&D to production-scale samples.

Safety: Overpressure protection, emergency stop, and HEPA-filtered dust containment.

Connectivity: Wi-Fi/Bluetooth for remote monitoring, compatible with LIMS systems.

Accessories Main Unit: Powder Tapped Density Analyzer with safety enclosure.

Software Package: Compliance-ready SPC software with FDA 21 CFR Part 11 modules.

Testing Kits: Set of 3 stainless-steel density cells (10 cm³, 50 cm³, 250 cm³).

Calibration weights (100 g, 500 g) with certificate.

Dust Management: HEPA filter unit and anti-static brush.

User Documentation: Multilingual quick-start guide and maintenance manual.

Technical Parameters

Parameter Specification

Tapping Range 1–3000 taps (adjustable speed: 10–60 taps/min)

Density Measurement 0.1–5.0 g/cm³ (±0.005 g/cm³ accuracy)

Pressure Application 0–370 MPa (programmable ramp rates)

Temperature Control -10°C to 80°C (±0.2°C stability)

Humidity Tolerance 5–95% RH (non-condensing)

Display/Interface 10.1" touchscreen with multi-language GUI

Power Consumption 600 W (110–240 V AC, 50/60 Hz)

Dimensions (W×D×H) 500 × 600 × 800 mm

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
