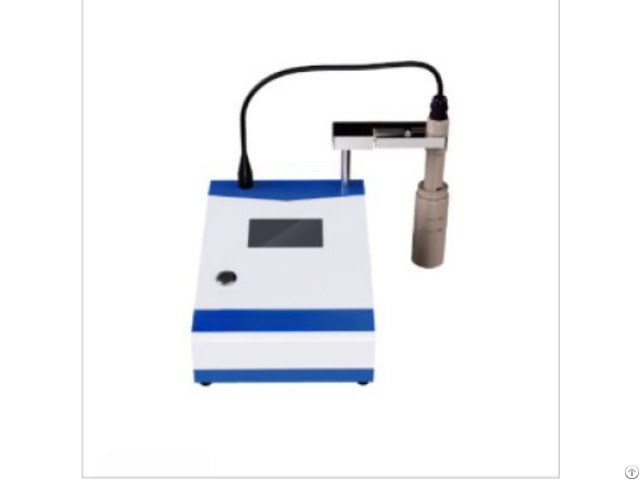

Battery Slurry Resistance Tester - China

Standard

ASTM B193: Standard Test Method for Resistivity of Electrical Conductor Materials ISO 18516: Conductive Coatings – Measurement of Resistivity IEC 62660-3: Secondary Lithium-Ion Cells – Part 3: Safety Requirements RoHS Compliance (Restriction of Hazardous Substances) CE Certification (Conformité Européenne) Product Advantages

Precision in Viscous Media Sub-milliohm Sensitivity: Measures resistivity as low as 0.1 mΩ·cm for high-solids slurries.

Non-Contact Electrodes: Eliminates contamination risks with gap-sensing technology.

Rapid Process Integration 2-Second Test Cycle: High-speed sampling for inline production monitoring.

Auto-Cleaning System: Solvent-resistant nozzles prevent cross-contamination.

Intuitive Operation 7” HD Touchscreen: Glove-compatible interface with multilingual support (10 languages).

QR Code Data Export: Share test results instantly via smartphone scanning.

Industrial Robustness Chemical-Resistant Body: 316L stainless steel enclosure with PTFE coating.

IP65 Rating: Withstands dust, splashes, and harsh cleaning agents.

Smart Connectivity IoT Integration: Real-time data streaming to PLC/SCADA systems via OPC UA.

AI-Driven Diagnostics: Predicts slurry stability based on resistivity trends.

Product Features

Dynamic Temperature Control: Built-in Peltier module (-20°C to 80°C ±0.2°C accuracy).

Viscosity Compensation: Auto-adjusts measurements for slurries up to 10.000 cP.

Multi-Frequency Testing: Simultaneous DC and AC (1 Hz – 10 kHz) analysis.

Laser-Guided Sampling: Ensures consistent probe immersion depth (±0.05 mm).

Emergency Shutoff: Magnetic reed switch for immediate power cutoff.

Accessories Included Slurry Testing Kit: Platinum-iridium electrodes (10mm/20mm spacing).

Disposable sample cups (100mL, 500mL).

Software Suite: License key for SlurryAnalyst Pro (Windows/macOS).

6-month free access to cloud-based SPC tools.

Calibration & Safety: NIST-traceable standard resistor (10 mΩ, 100 mΩ, 1 Ω).

Chemical-resistant gloves (Class 0 - 2 pairs).

Portability Case: Waterproof Pelican case with custom foam inserts.

Shoulder strap and padlock eyelets.

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for ASTM/ISO/CE standards
