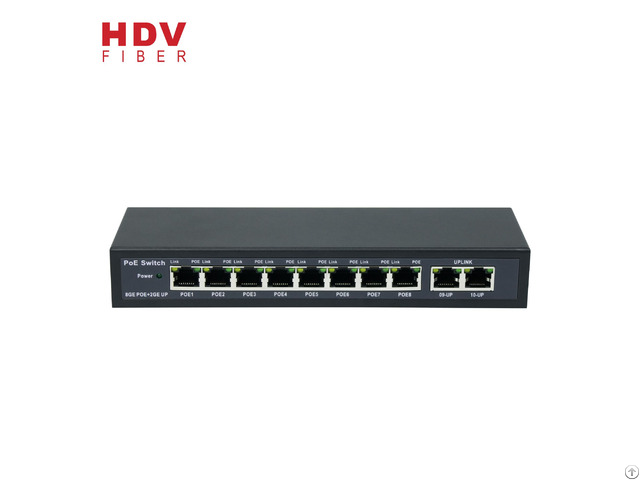

Capacity 20g 10 Gigabit Smart Poe Switch With 8 Port - China

Network Standard • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at Port • 8 * 10 / 100/1000Mbps RJ45 port • 2 * 10 / 100/1000Mbps RJ45 uplink port PoE Power Supply • 8 * 10 / 100/1000Mbps RJ45 port supports PoE + power supply (Data / PoE) • Maximum single port power supply is 30W • The power supply of the whole machine is 96W, 120W, 150W (optional) PoE Connection • 1-8 ports support IEEE802.3af / at • Support RJ45 network port 1/2 +, 3 / 6- line pair Indicator Light • Data port has a LINK / ACT.

1000Mbps indicator • The uplink port has two LINK / ACT.

1000Mbps indicators • PoE status indicator • Machine power indicator Performance • Store and forward • Support 2K MAC address table depth • 20Gbps backplane bandwidth Forwarding Rate • 10Mbps: 14880pps/port • 100BASE-T: 148800pps/port • 1000BASE-T: 1488095pps/port Port Function • Fast and forward, MAC automatic learning and aging, power supply priority mechanism • IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control Use Environment • Working temperature: -10 ℃ --55 ℃ Power Supply • External power supply • INPUCT: 110VAC-265VAC, 47HZ-53HZ • OUTPUT: 52V DC, 2.3A • 96W, 120W, 150W (optional) Weight and size • 0.39KG • 196mm * 74mm * 29mm (L * W * H)

Company Contact:

• Posted By: HDV phoelectron technology LTD

• Phone: 18028758039

• Address: 6 / F, Building B, Xuda Industrial Zone, Fenghuang Avenue, Fuyong Street, Baoan District, Shenzhen, Shenzhen , China

• Email:

• Website: https://www.hdv-fiber.com

• Business Description: Shenzhen H D V Photoelectron Technology Ltd. established in 20 12, is a professional manufacturer engaged in the research, development, production, sale and service of 1 * 9 transceiver module \S F P modules\media converters\O N U\O L T.

  We are located in Shenzhen with convenient transportation access.

  Dedicated to strict quality controlling and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

  In recent years, our company has introduced a series of advanced equipment including Laser automatic coupling machine\Eye diagram instrument\Oscilloscope.

  In addition, we have obtained R o H S\CE\FCC\S G S\T U V certificates.

  Selling well in all cities and provinces around China, especially as the 1 * 9 transceiver modules provides to famous brand T P- Link.

  our products are also exported to clients in such countries and regions as India\Sweden\Ukraine\Russ ia\Brazil\France and so on, as South Asia\South America\Africa and East Europe.

  We also welcome O E M and O D M orders.

  Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

  Hope we could offer the best products and services to you!
