Dr5g17support 802 11ac Ax Mmcx Connector 5g 17dbi panel Antenna  - China

price: 200.00 Dollar US$

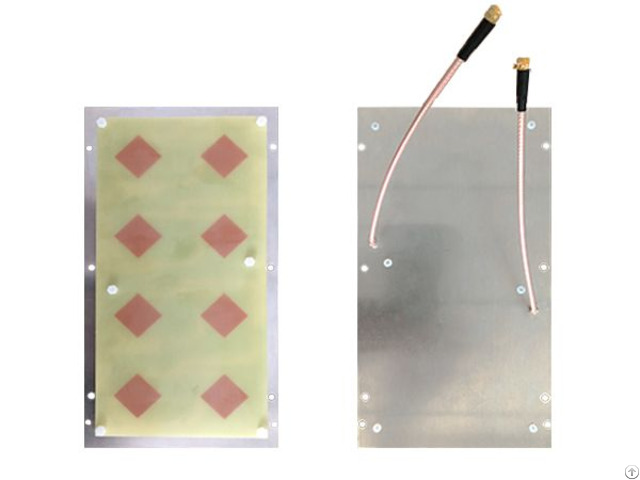

Dr5g17support 802 11ac Ax Mmcx Connector 5g 17dbi panel Antenna 

Products Photos Catalog Dr5g17support 802 11ac Photos Catalog

1 - Feature

* 17dBi Dual Polarized Micro strip Antenna Array

* 5GHz of frequency

* MMCX connector

* Support 802.3 11AX/AC/AN

* RoHS compliance 2 - Application

* 5GHz Wireless Communication

* WLAN device, WLAN Router, e.g., AP, PIC Wireless Card 3 - Description

This antenna array is designed for 5GHz applications and can be easily built-in portable devices with MHF processes.

It has excellent stability and sensitivity to consistently provide high signal reception efficiency.

General Data Product Name Dual Polarized Micro strip Antenna Array

Part No.

DR5G17_A DR5G17_H

Frequency 5.1GHz-5.9GHz 5.1GHz-5.9GHz

V.S.W.

R <1.85 <1.65

Gain (dBi) 17dbi 18dbi

Polarization Vertical & horizontal Vertical & horizontal

Isolation >40db >40db

Storage Temp -20°C~70°C -20°C~70°C

Operating Temperature -20°C~60°C -20°C~60°C

Antenna Type Antenna Array Antenna Array

Dimension 200*105mm 200*105mm

Weight
