Fast Ethernet 10 100 1000m Fiber To Copper 80km Sc Media Converters - China
price: 100.00 Dollar US$

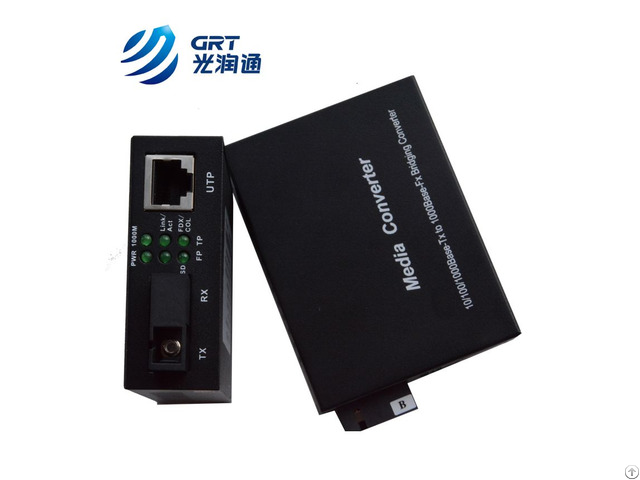

Fast Ethernet 10/100/1000M fiber to ethernet single fiber 80km SC Media Converters 1 - Introduction W8100G-80F-3S/5S is a reliable and cost-effective 10/100/1000M Single Fiber media converter with one SC connector and one RJ45 port.
it can realize the conversion of 10M/100M/1000M Ethernet copper interface and optical interface effectively.
This device operates on singlemode 1310nm and 1550nm in a pair, can reach up to 80km.
Various types of Fiber media converter are available: 10/100M, 10/100/100M, single mode/multi mode, single fiber/dual fiber, Built-in power supply, External power supply, Plug type/ Frame type Protocols: IEEE802.1Q IEEE802.3X IEEE802.1D 10/100/1000M Fiber Media Converter
Parameters External power supply Internal Power Supply
Protocols IEEE802.1Q, IEEE802.3X, IEEE802.1D
Interface Copper RJ45: 10/100/100M
Fiber: 1×9/SFP/FC/SC
Converting method Store and forward
Packet forwarding 16000bytes
LFP(failover) support Time delay store and forward: 9.6us MTBF 65, 000hour
Power supply Input: AC90-264V, DC100-380V, Output: DC5V 1A Input: AC90-264V, DC100-380V
Power consumption <2W
Operating temperature -10 - 55°
Operating Humidity 5%-90%
Storage temperature -10 - 55°
Storage humidity 5%-90% non condensation
Dimension(mm) 95×70×26 140×110×32 2 - Key Features -- Built-in efficient exchange Kernel, supress the broadcast storm, realize flow control, Cyclic Redundancy Check(CRC)
-- Support 100Base-FX fiber transmission standard, can be connected with other products
-- Support SPANNING TREE fault-tolerant network
-- 10/100/1000Mbps self-adaptive, Full/half duplex auto-negotiation, can be upgraded smoothly.
-- Maximum transmission distance up to 10km.
Company Contact:
- Phone: +8618513128826
- Address: Block B, # 1 Building, No.48 North 3rd Ring West Road, Haidian District, Beijing 100086, Beijing , Beijing , China
- Email:
- Website: https://grtoptic.ecer.com
Published date: January 12, 2018
- Business Description: We're leading manufacturer of quality 1Gb/10Gb network interface card, server adapter, as well as optical transceivers, optical patch cords, fiber media converter, bypass, CWDM/DWDM multiplexer, optical splitter, HBA card, host cabinet.
We offer you top quality networking products and prompt 7*24h service to keep your highly efficient and stable performance business guaranteed.
