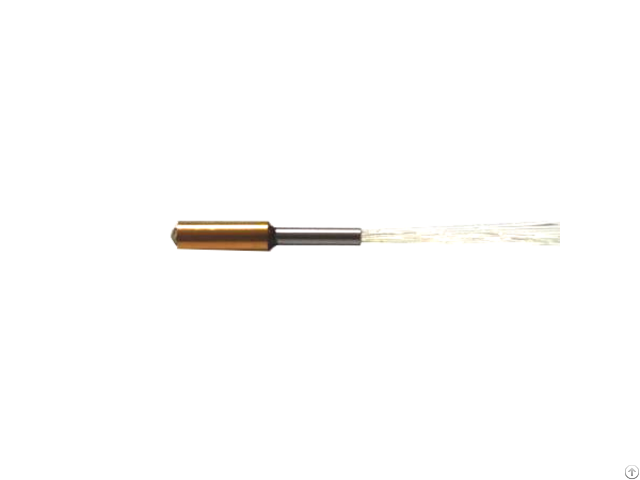

Fiber Collimator64 - China
price: 15.00 Dollar US$
64 fiber collimator
features
low insertion loss wide pass band low pdl high stability and reliability applications isolators collimators switches wdm signal processing optical sensingvroptical fiber slip ring
performance specifcations
parameters p grade a grade wavelength(nm) 1310nm, 1550nm , 850nm, 1250~1650nm insertion loss (typ.
) (db) ≤0.7 insertion loss (max.
) (db) return loss(db) ≥55 beam diameter(mm) ＜0.5 operating temperature (℃) -20℃ ~ +75℃ storage temperature ( ℃) -40℃ ~ +85℃ optical fiber model corning smf-28e, zbl, lbl polarization dependent loss(db) ≤0.15 directivity(db) ≤0.1 maximun power handling(w) 500 dimensions(mm) 2.78*21 , 3.2*21
Company Contact:
- Phone: +8607713121055
- Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town,, Nanning , China
- Email:
- Website: https://www.xhphotoelectric.com
Published date: August 29, 2022
- Business Description: Optical Switch, Optical Protection, optical-power signal acquisition equipment, Optical Attenuator, stable light sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS), optical fiber grating sensors and other optoelectronic products.
