Gigabit Industrial Poe Media Converter With Sfp Uplink - China

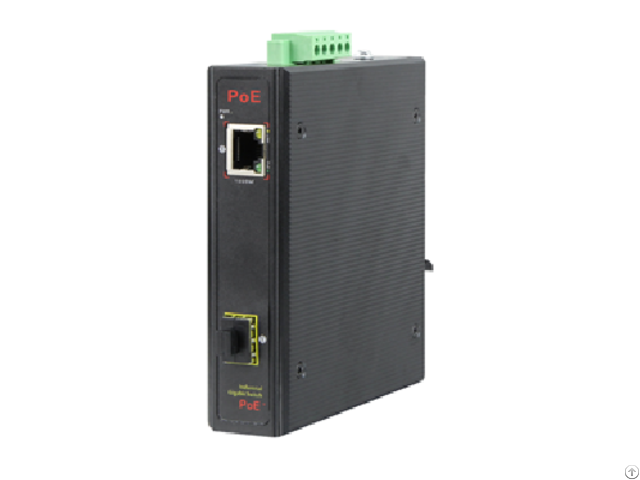

BD-S201FPI series is self-developed gigabit industrial PoE switch/media converter, with 1*Gigabit RJ45 ports +uplink 1*Gigabit SFP slot, port 1 support IEEE 802.3af/at standard POE power supply, single port POE power up to 30W, and the maximum POE output power of the whole machine is 18W (at-36W).

As a POE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable.

It can supply the POE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment.

It is suitable for intelligent transportation, rail transportation, electric power industry, mining mining, metallurgy and green energy construction and so on.

A reliable communication network.

FEATURE n Gigabit Combo Fast Ethernet ◇ All series supports “Gigabit Ethernet port + gigabit SFP port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire speed forwarding .

◇ Support full duplex based on IEEE802.3x and half duplex based on backpressure .

n Intelligent POE Power Supply Function ◇ 1*10/100/1000 Base-T RJ45 ports support PoE power supply to meet the needs of PoE in various industrial fields.

◇ Conforms to the IEEE 802.3af POE power supply standard, automatically recognizes PoE devices for power supply, without damaging non-PoE devices.

The maximum POE output power of the entire device reaches 18W, and the maximum POE output power of a single port is 30 W.

n The Equipment Is Stable And Reliable ◇ The host has low power consumption, no fan mute design, aluminum alloy metal shell, excellent heat dissipation, and ensure stable operation of products.

◇ The equipment fully meets the requirements of 3C, CE, FCC and RoHS safety regulations, and is safe and reliable.

◇ The user can easily understand the working status of the device through the power indicator (PWR), port status indicator (Link/Act), and POE operation indicator.

Model BD-S201FPI BD-S201FPI-at Interface 1*10/100/1000 Base-T POE Port(Data/Power) 1*1000M uplink SFP Solt(Data) PoE Port Port 1 support POE @ IEEE802.3af/at

Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-TX IEEE802.3z 1000Base-LX/SX/CX IEEE802.3x PoE Standard IEEE802.3af/at

Ethernet Port Feature 10/100/1000BaseT automatic detection, full / half duplex MDI/MDI-X adaptive

SFP Port Characteristic 1.25Gbps, Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order single-mode / multi-mode, single fiber / double fiber optical module.

LC)

Forwarding Mode Store and Forward(Full Wire Speed)

Switching Capacity 8Gbps

Forwarding Rate@64byte 2.98Mpps MAC 8K

Buffer Memory 1M

Twisted Pair Transmission 10BASE-T: Cat3, 4, 5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat5 or later UTP(≤100 meter) Fiber Cable/

Distance Multi mode: 850nm 0 ~ 550M, Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Power Supply Pin support 1/2 (+), 3/6 (-) 4-core power supply by default, optional 4/5 (+), 7/8 (-) power supply

MAX / AVERAGE Power Per Port 30W/15.4W 30W/30W

Total PWR / Input Voltage 18W/(48VDC)@af 36W/(48VDC)@af/at

Power Consumption Standby: ＜3W;

Full load: af<18W Standby: ＜3W;

Full load: af/at<36W LED indicator Power Indicator : PWR (green);Network Indicator: Link (yellow);

Fiber Indicator: L/A (green); PoE Indicator: PoE (green) Operation TEMP / Humidity -40～+80°C;5%～90% RH Non condensing Storage TEMP / Humidity -40～+85°C;5%～95% RH Non condensing Dimension 119*100*30mm

Net /Gross Weight ＜0.4kg / ＜0.7kg Anti-surge / Protection Level Anti-surge: 4KV 8/20us;

Protection Level: IP40 IEC61000-4-2(ESD)±8kV Contact Discharge, ±15kV Air Discharge IEC61000-4-3(RS)10V/m(80~ 1000MHz) IEC61000-4-4(EFT)Power Line: ±4kV; Data Line: ±2kV IEC61000-4-5(Surge)Power Line, CM±4kV/DM±2kV；Data Line, ±4kV IEC61000-4-6 (Radio Frequency Conduction)10V(150kHz~80M Hz) IEC61000-4-8 (Power Frequency Magnetic Field) 100A/m Continued; 1000A/m, 1s to 3s IEC61000-4-9 (Pulsed Magnetic Field) 1000A/m IEC61000-4-10 (Damping Oscillation) 30A/m, 1MHz IEC61000-4-12/18 (Shockwave) CM 2.5kV, DM 1kV IEC61000-4-16 (Common Mode Conduction) 30V Continued; 300V, 1s FCC Part 15/CISPR22(EN55022)Class A IEC61000-6-2(General Industry standard) Mechanical Properties IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) Certification 3C CE mark, commercial; CE/LVD EN60950;

FCC Part 15 Class B; RoHS; Warranty 5 years, lifelong maintenance.
